Rear Abs Wheel-Speed Sensor Removal/Installation

Remove the rear side trim. See REAR SIDE TRIM REMOVAL/INSTALLATION .
Remove in the order indicated in the illustration.

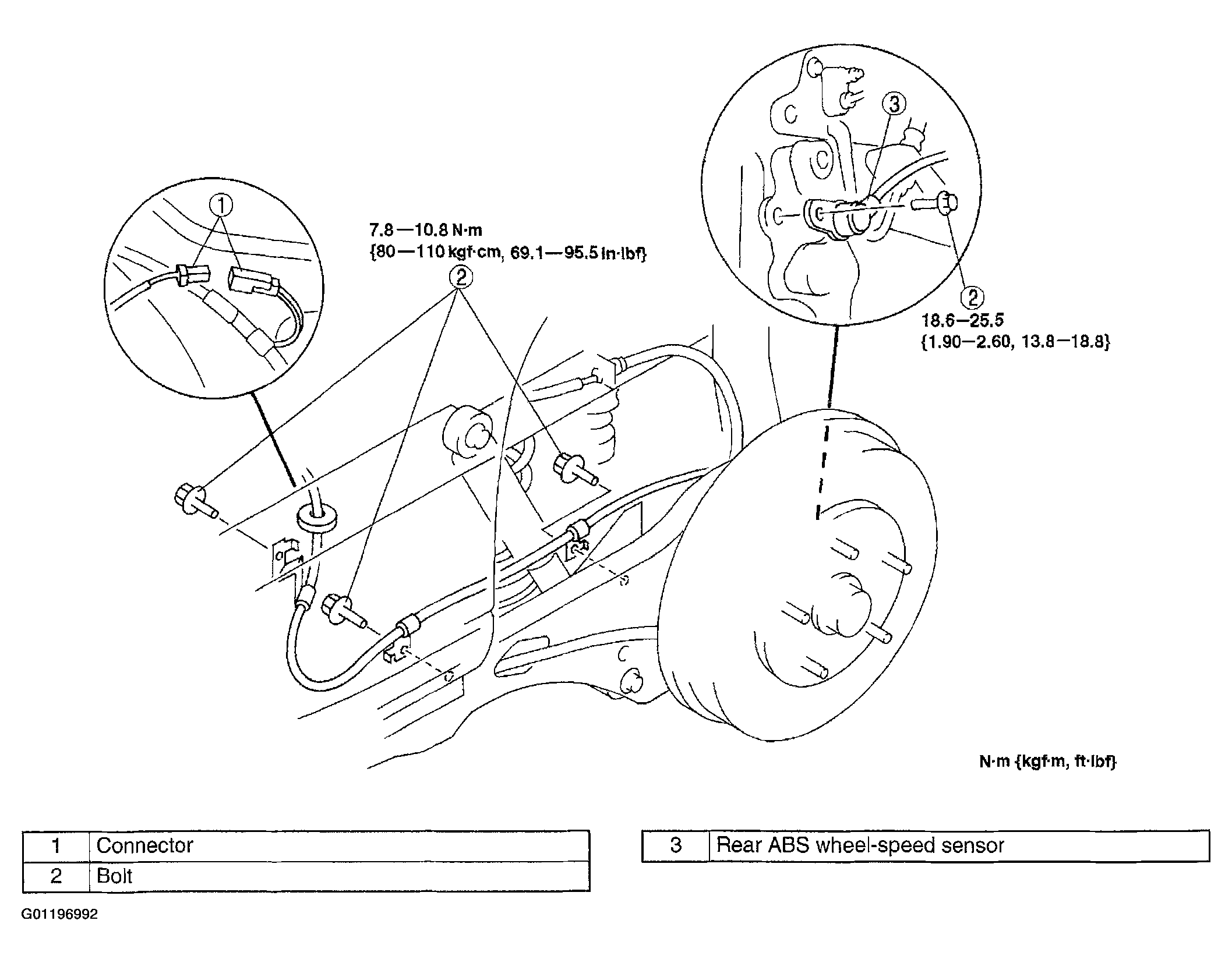

Fig 1: Removing/Installing Rear Wheel Speed Sensor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
