Symptom Troubleshooting
›
With TCS
With TCS

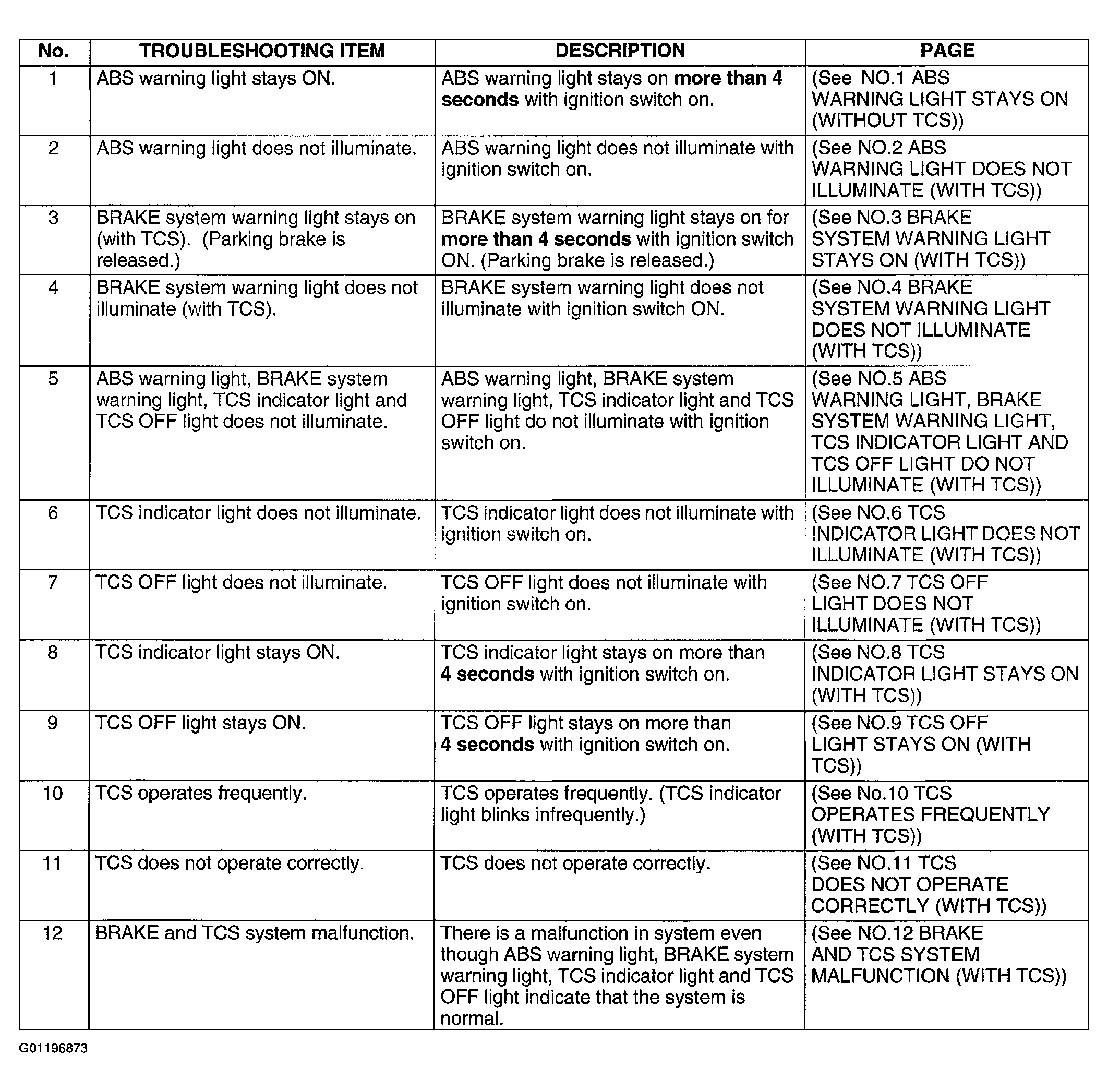

Fig 1: Symptom Trouble Shooting Chart (With TCS)
Courtesy of MAZDA MOTORS CORP.

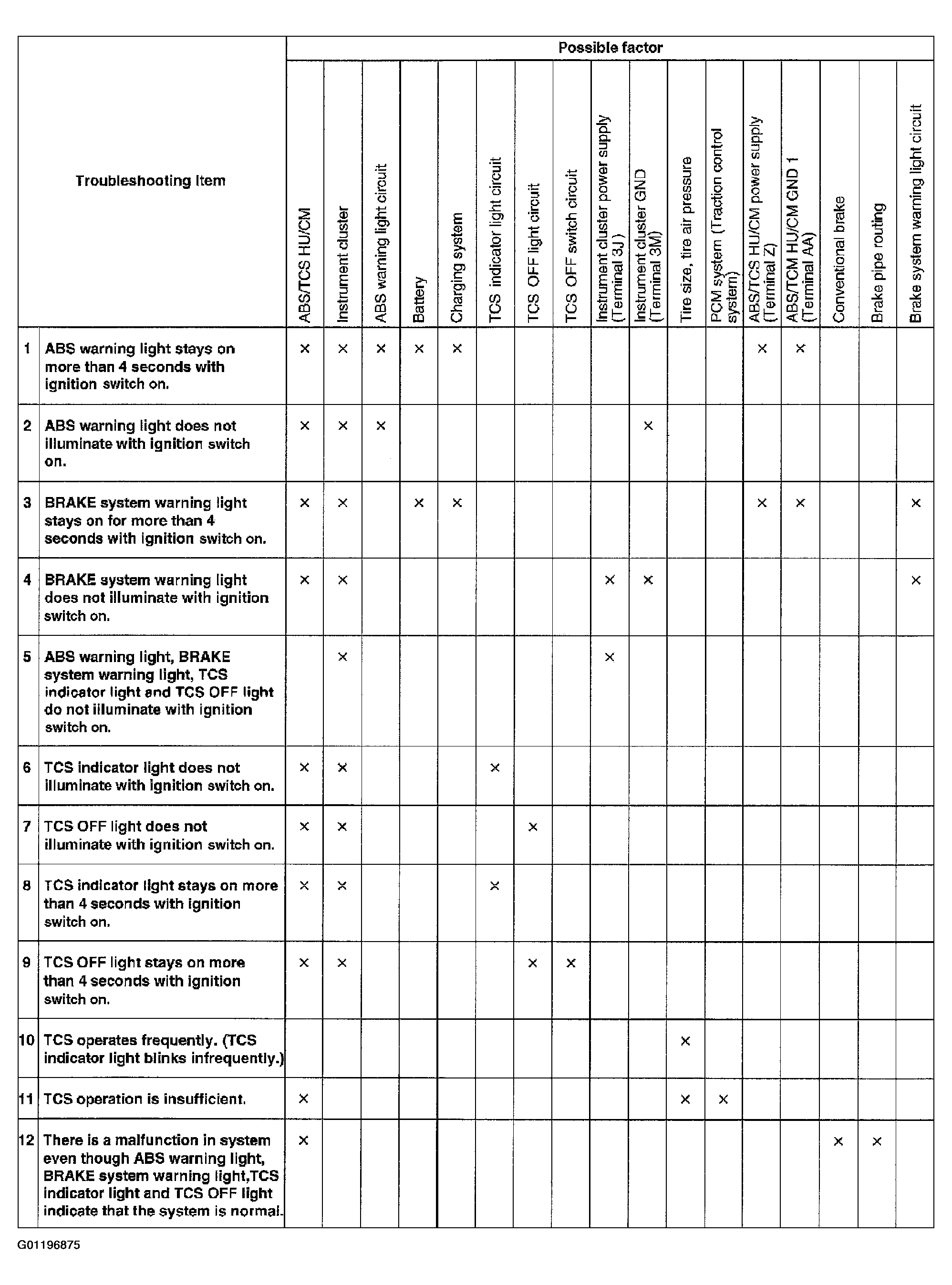

Fig 1: Warning Light Trouble Shooting Chart (With TCS)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
