Instrument Cluster Connector End View

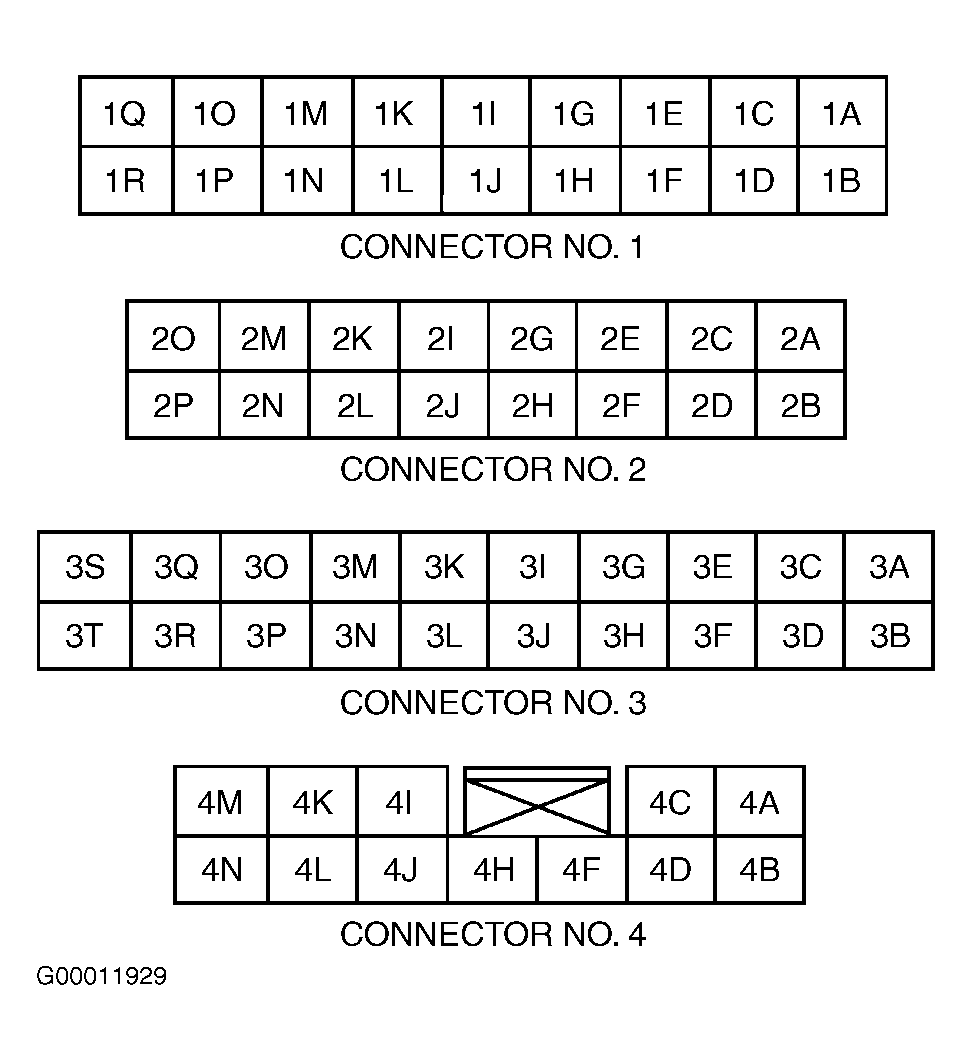

Fig 1: Instrument Cluster Connector End View
G00011929Courtesy of MAZDA MOTORS CORP.

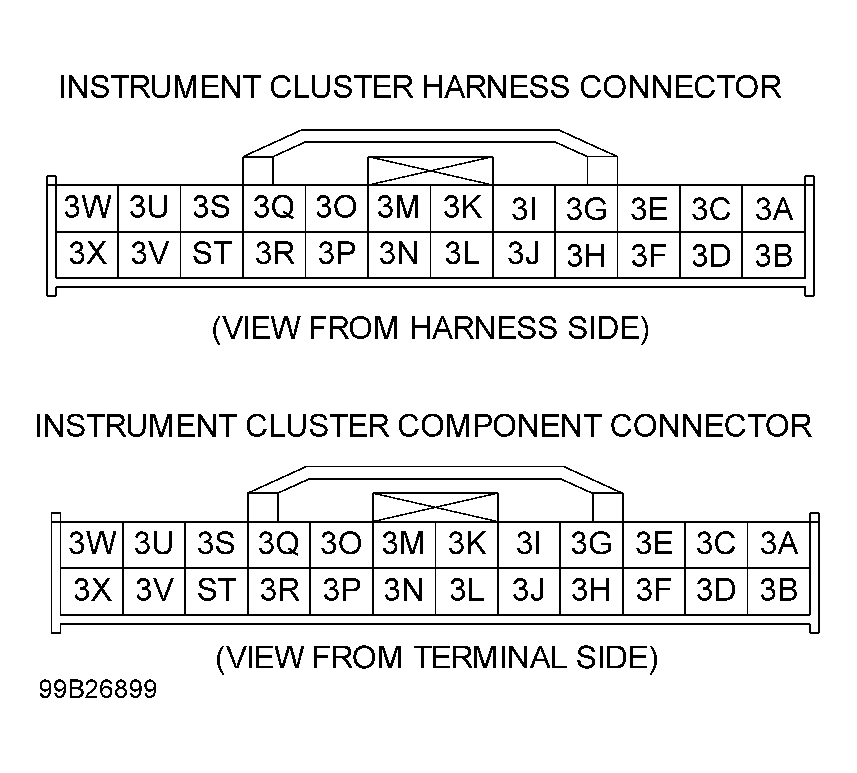

Fig 1: Instrument Cluster Connector End View
G99B26899Courtesy of MAZDA MOTORS CORP.
