PCM Connector End View (MPV)

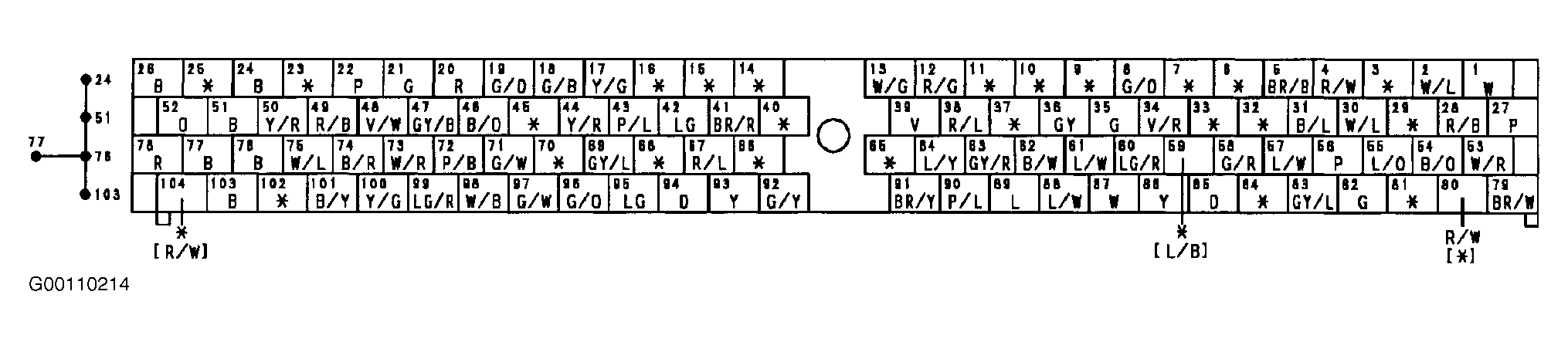

Fig 1: PCM Connector End View (MPV)
G00110214Courtesy of MAZDA MOTORS CORP.
