Power Sliding Door System Connector End View
Power Sliding Door System Connector End View

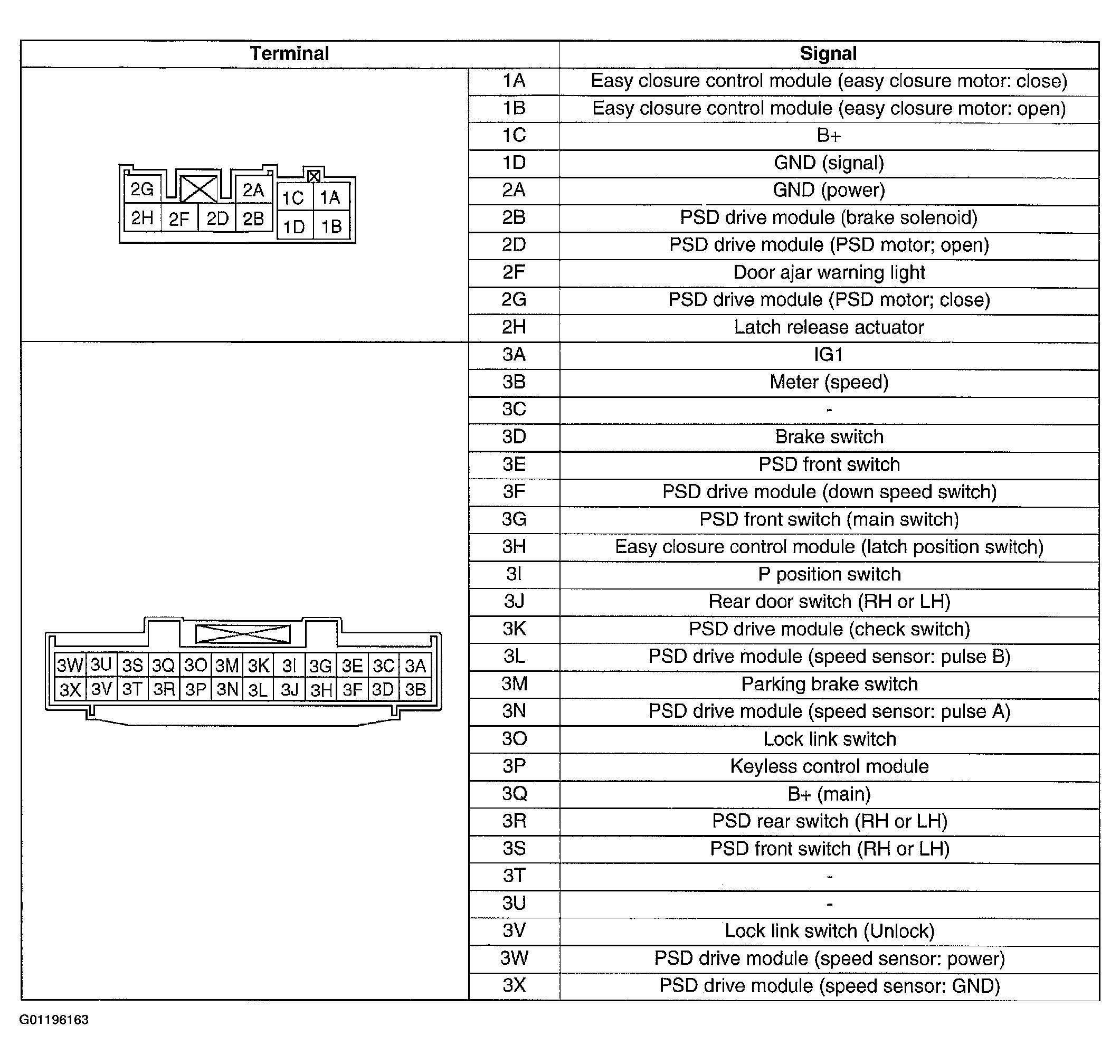

Fig 1: Power Sliding Door System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
