Oil Pan Removal Note

  1. Remove the transaxle housing bolts from oil pan.
    Fig 1: Removing Transaxle Housing Bolts From Oil Pan
    G01197320Courtesy of MAZDA MOTORS CORP.
  2. Loosen the oil pan bolts and studs in several passes in the order shown.

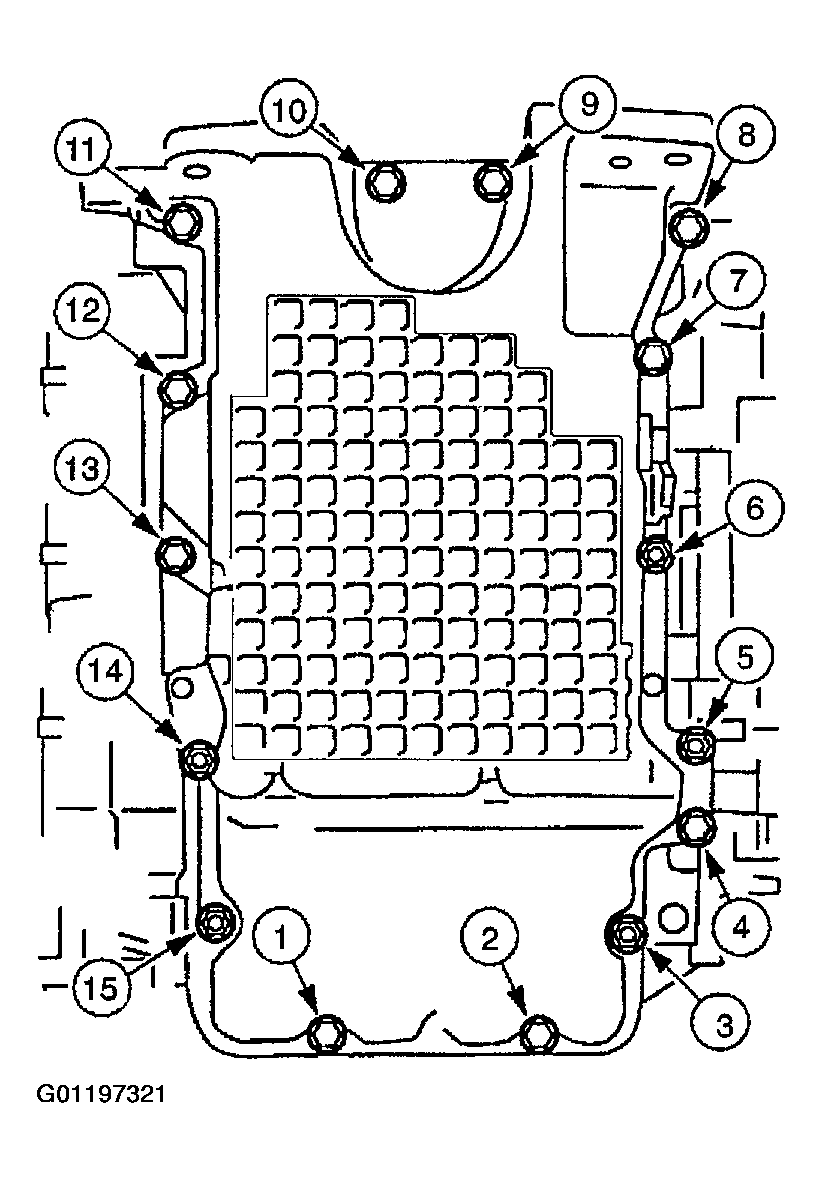

    Fig 2: Oil Pan Bolt Loosening Sequence
    G01197321Courtesy of MAZDA MOTORS CORP.
