Oil Pump Installation Note

  1. Tighten the oil pump bolts in the order shown.

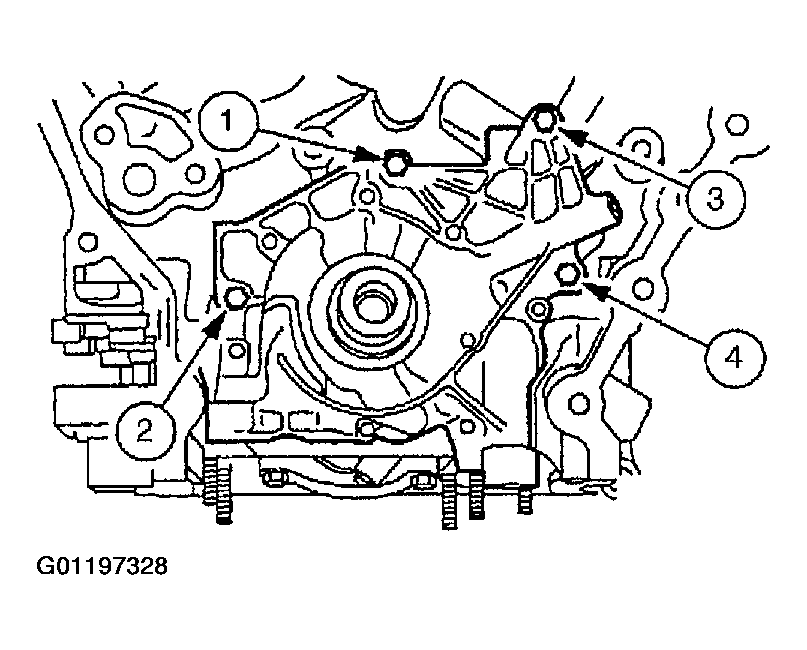

    Fig 1: Oil Pump Bolt Tightening Sequence
    G01197328Courtesy of MAZDA MOTORS CORP.
