Accelerator Pedal Removal/Installation: Notes

  1. Remove in the order indicated in the figure.

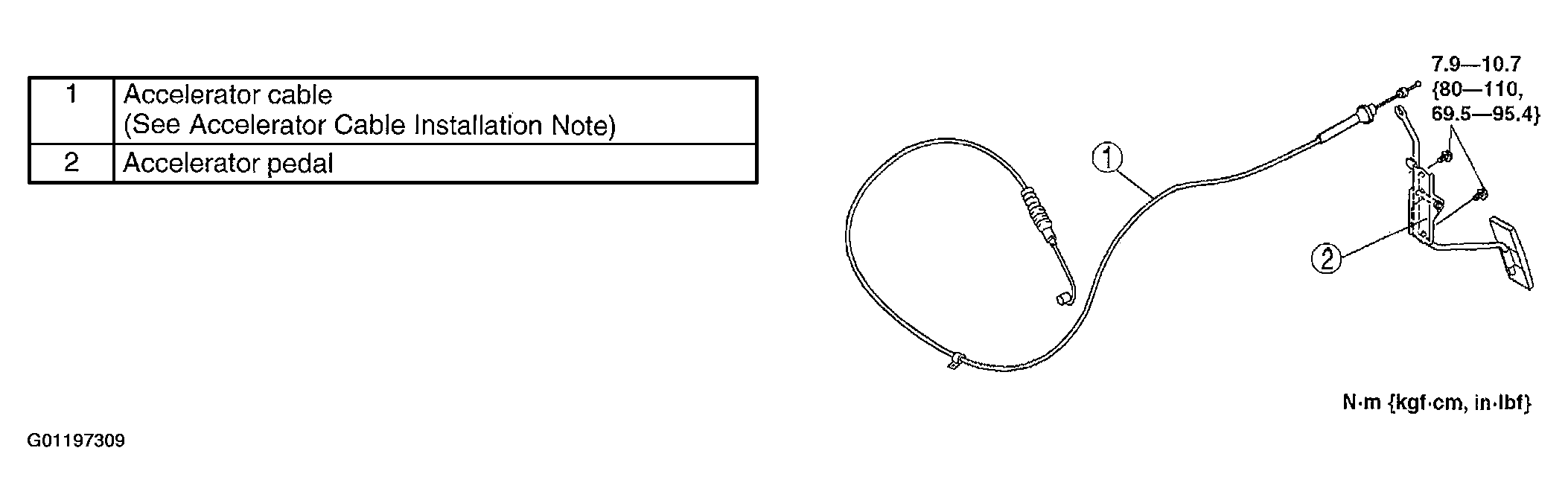

    Fig 1: Removing/Installing Accelerator Pedal & Cable
    G01197309Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
