Intake Manifold Installation Note

  1. Tighten the intake manifold installation bolts in the order indicated.

    Tightening Torque

    1. 8-12 N.m {82-122 kgf.cm, 72-105 in.lbf}

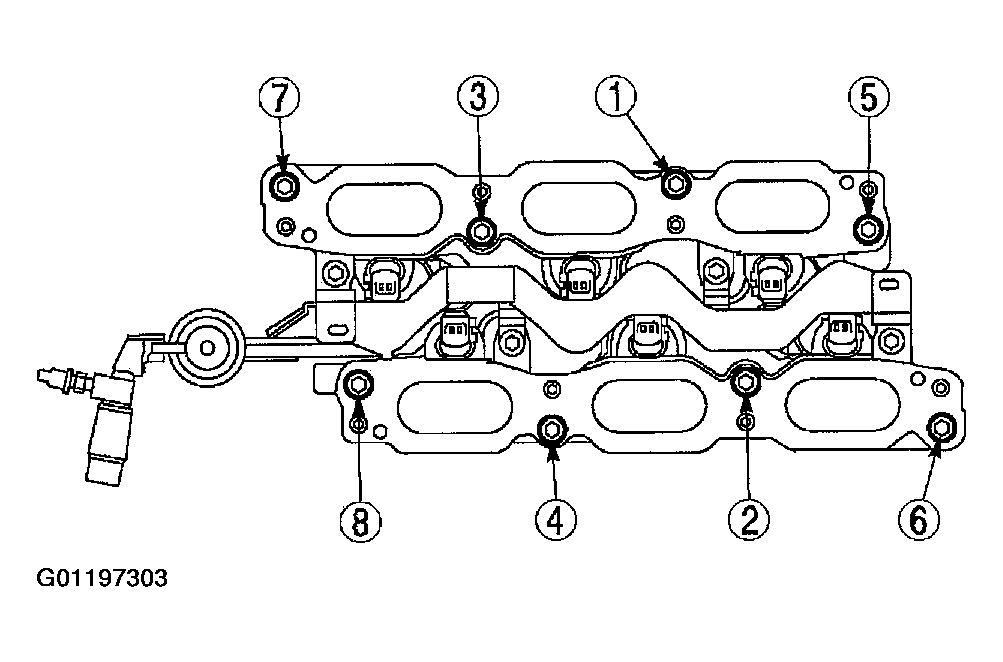

    Fig 1: Intake Manifold Bolt Tightening Sequence
    G01197303Courtesy of MAZDA MOTORS CORP.
