Distributor (MILLENIA 2.5L): Overhaul

Internal parts are not available. If faulty, replace complete distributor. Only cap, rotor and "O" ring are available. See Fig 1.

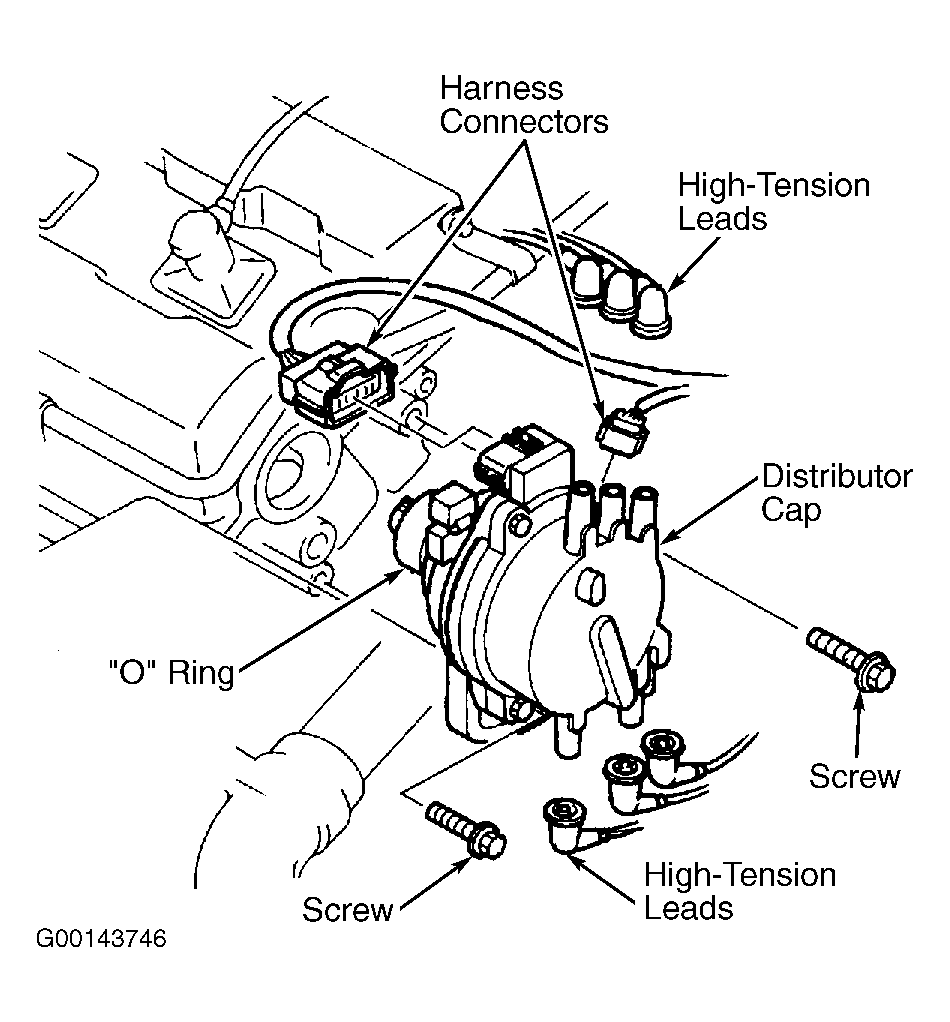

Fig 1: Removing Distributor (Millenia 2.5L)

Courtesy of MAZDA MOTORS CORP.
