Instrument Cluster Configuration
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

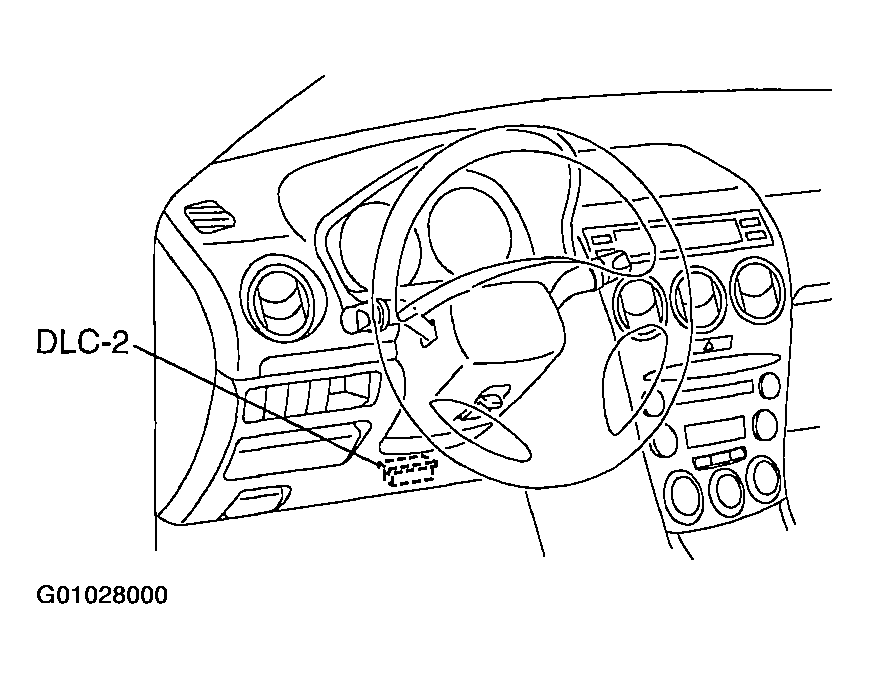

- Connect the SST (WDS or equivalent) to the DLC-2.
- Input vehicle information following the directions on the screen.
- Select "MODULE PROGRAMMING".
- Select "PROGRAMMABLE MODULE INSTALLATION".
- Select the following items and perform procedures according to directions on the screen.
Items:
- "IC"
- Retrieve DTCs using the SST
(WDS or equivalent), then verify that there is no DTC present.
- If DTC is present, perform applicable DTC inspection.
