Instrument Cluster Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If the instrument cluster is dropped or the print plate is damaged, the system will not work properly and it may be the cause of trouble or malfunctions.

Disassemble in the order indicated in figure. See Fig 1.

Fig 1: Disassembling Order Of Instrument Cluster
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

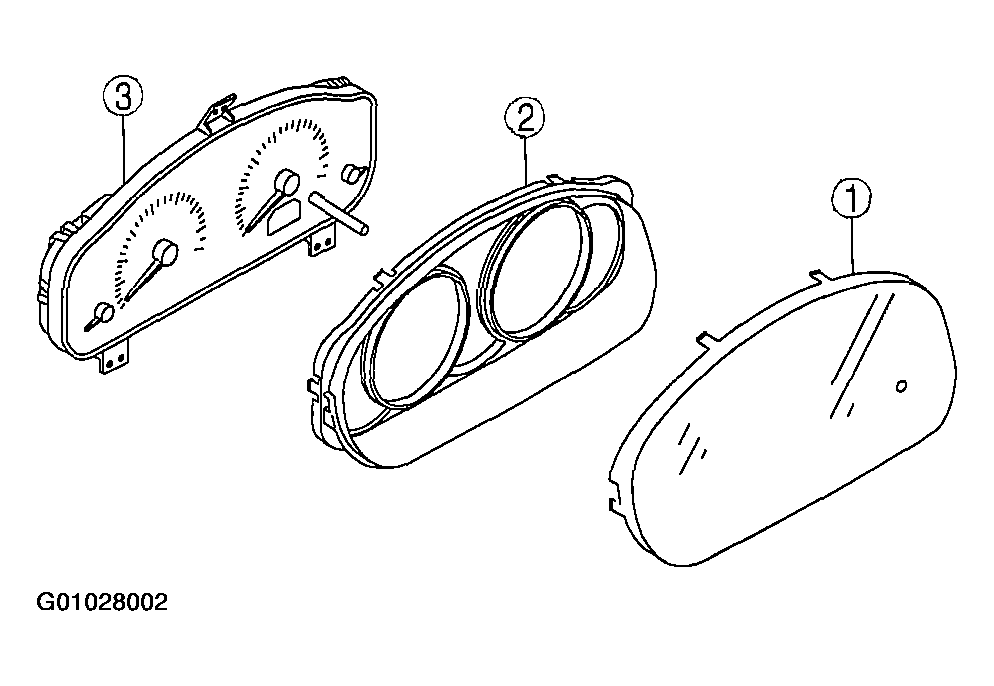

Fig 2: Disassembling/Assembling Instrument Cluster

G01028002

Courtesy of MAZDA MOTORS CORP.
