Thermostat Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air hose (without TC).
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove in the order indicated in the table.

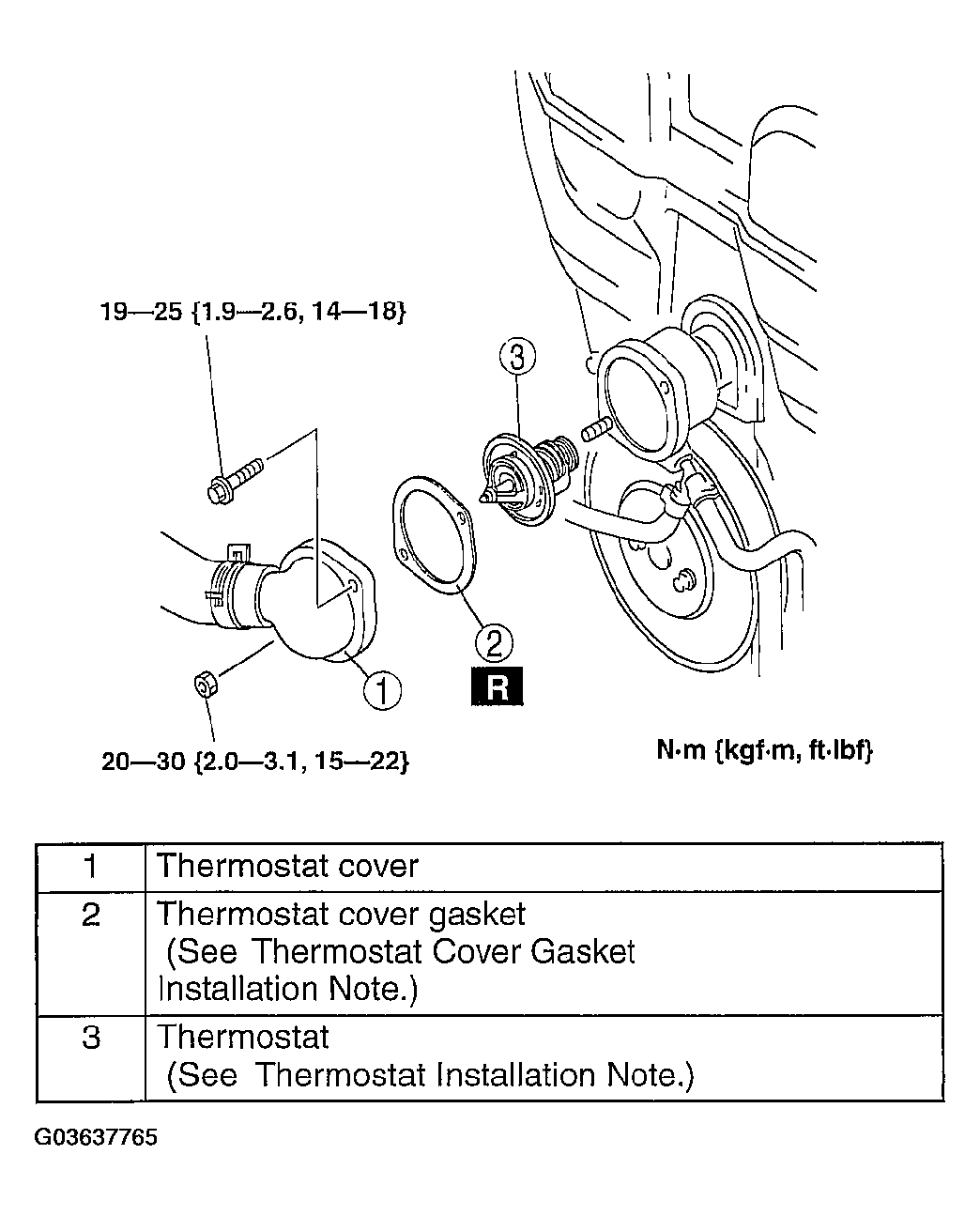

Fig 1: Thermostat And Cover With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
