Steering Shaft Installation Note

CAUTION: Do not apply a shock in the axial direction of the shaft.

Tighten bolt A.
Tighten bolt B from the left side temporarily.
Tighten bolt C.
Tighten bolt B.
Tighten nut D.

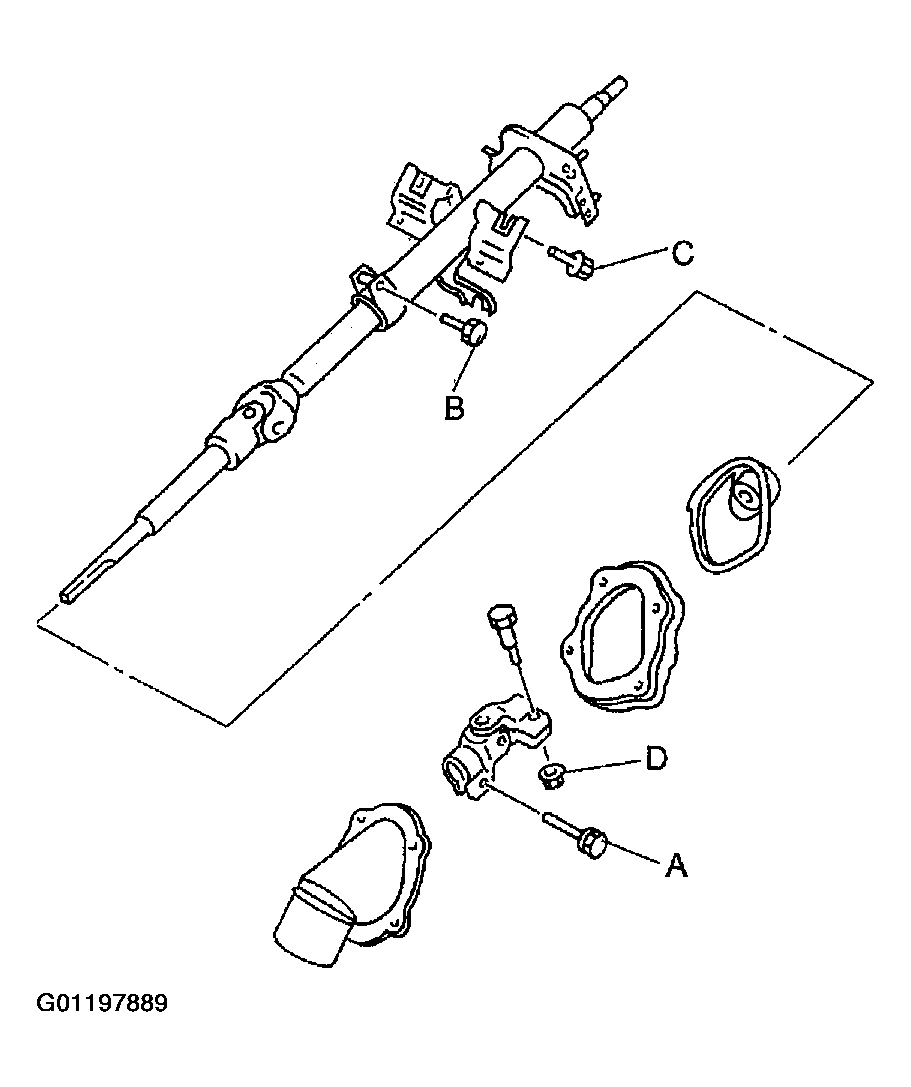

Fig 1: Identifying Steering Column Bolts
Courtesy of MAZDA MOTORS CORP.
