Front Lower Arm Removal/Installation: Notes

  1. Remove in the order indicated in the table.

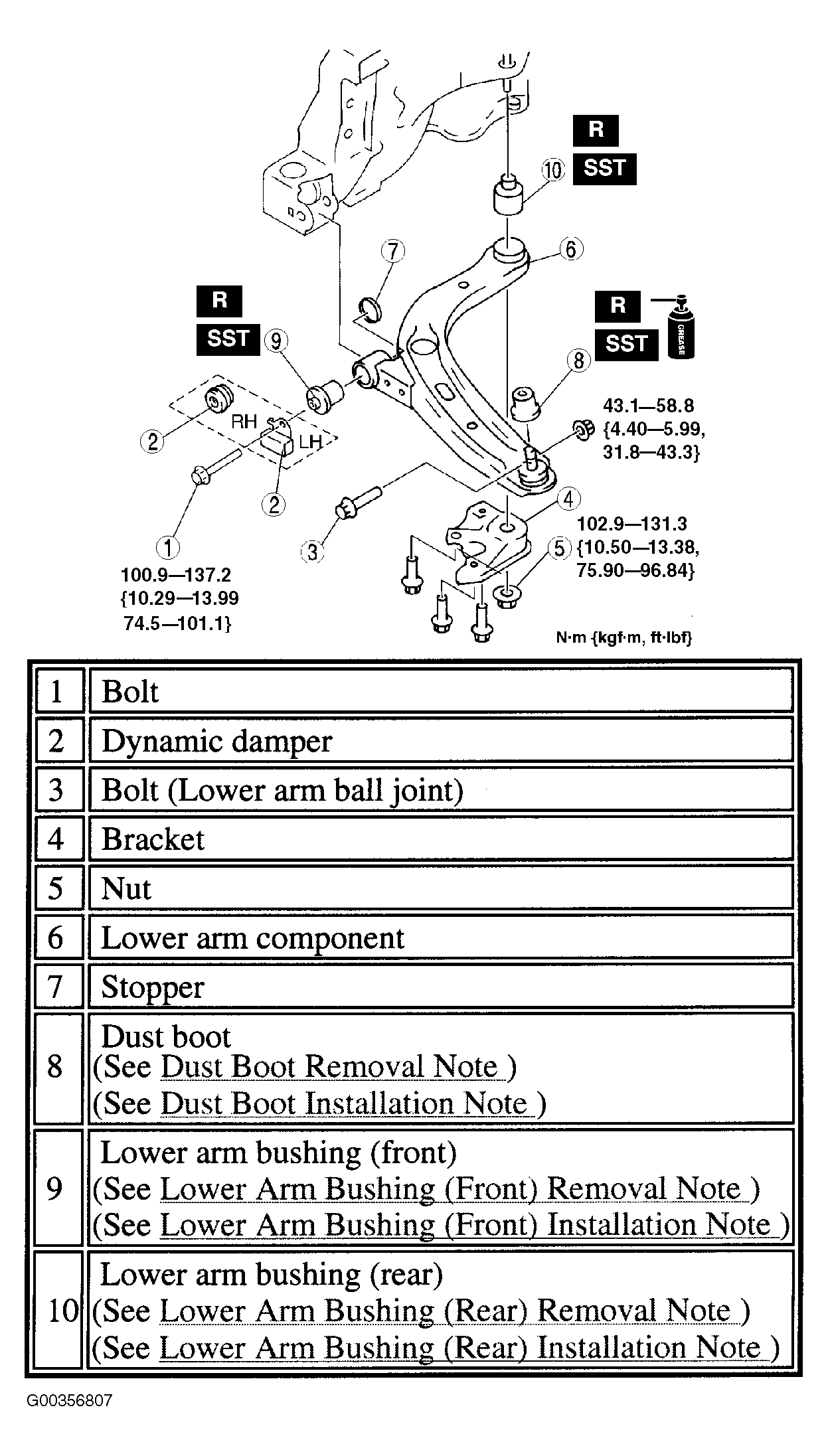

    Fig 1: Removing Front Lower Arm
    G00356807Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
