Parameter Identification Mode: Notes

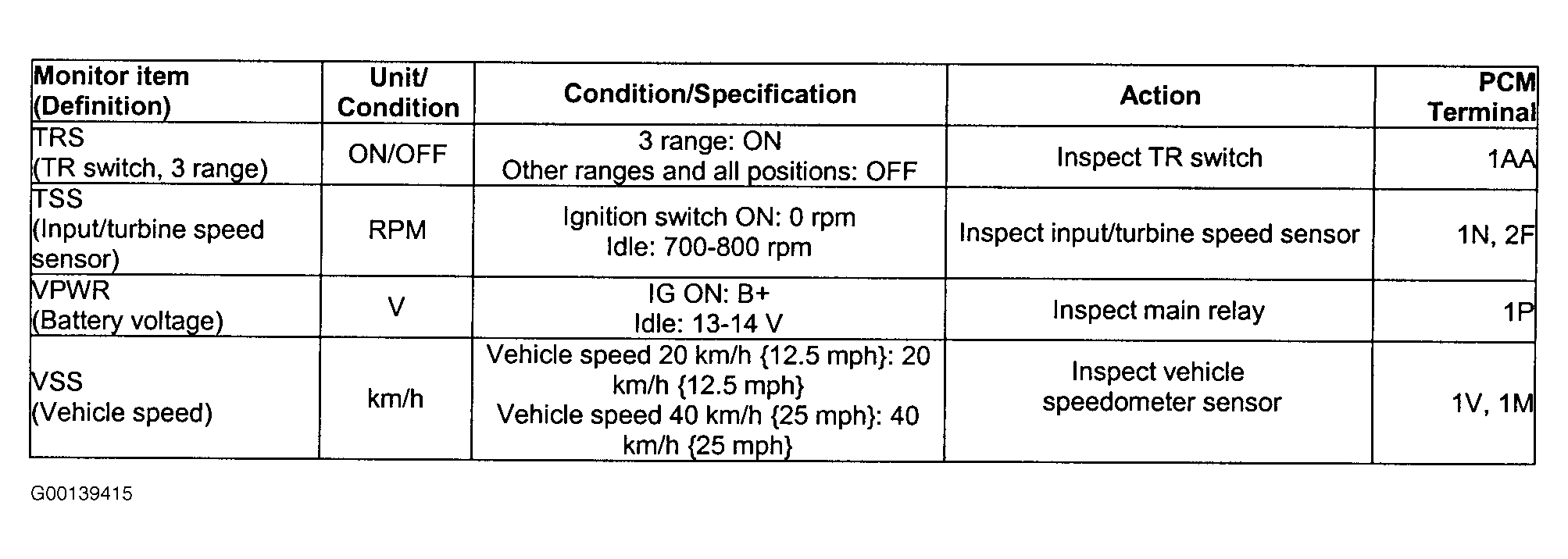

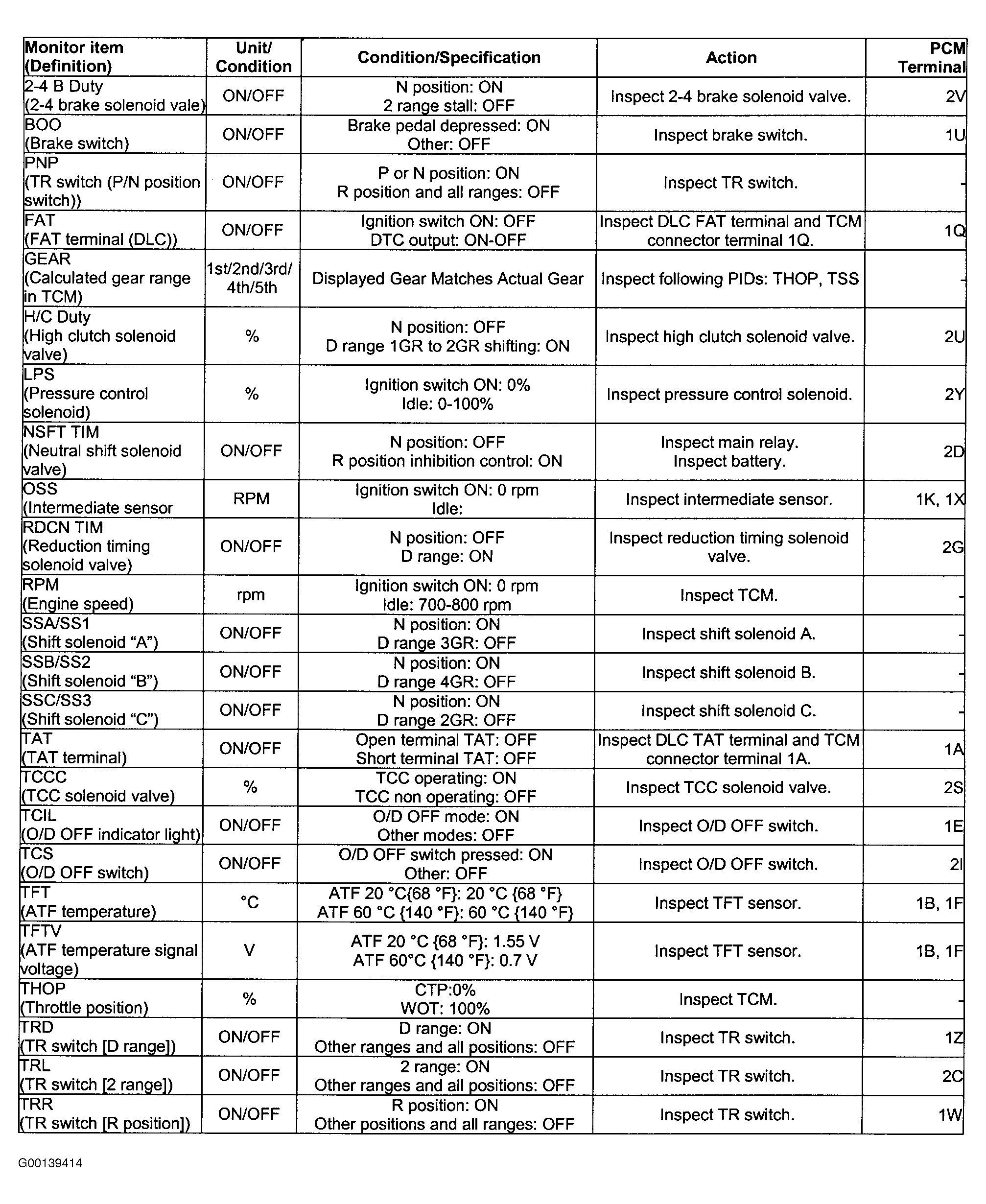

NOTE: For transaxle PID tables, see Figure and Figure . For engine control PIDs and PID information, see PIN VOLTAGE/PID VALUE CHARTS article in ENGINE PERFORMANCE.
