Removal & Installation (Protege5)

Disconnect negative battery cable. Remove passenger side kick panel. Disconnect harness connector. Unbolt and remove shift lock control unit with cruise control unit. See Fig 1 . To install, reverse removal procedure.

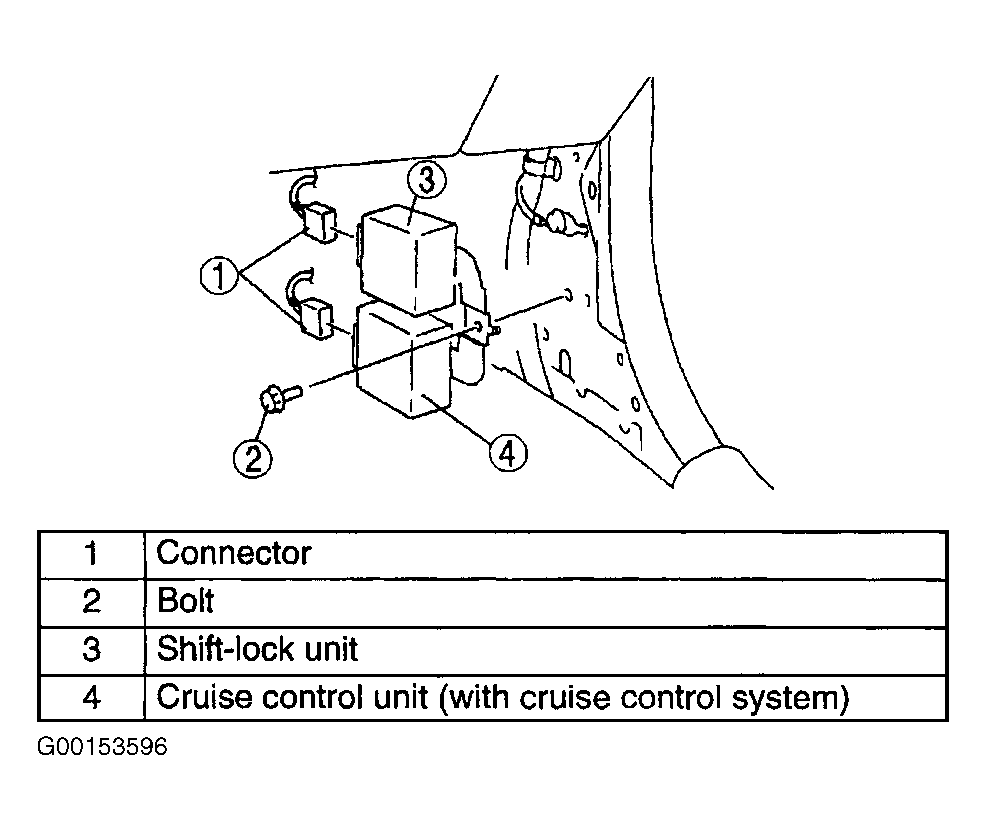

Fig 1: Identifying Shift Lock Control Unit Location (Protege5)
G00153596Courtesy of MAZDA MOTORS CORP.
