Door Lock Control Module Inspection

1. Measure the voltage at the door lock control module terminals as indicated below.
2. Disconnect the door lock control module connector before inspecting for continuity at terminals F, H, M, and N.
   • If not as specified, inspect the parts listed under "Action."
   • If the parts and wiring harnesses are okay but the system still does not work properly, replace the door lock control module.

Fig 1: Identifying Door Lock Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

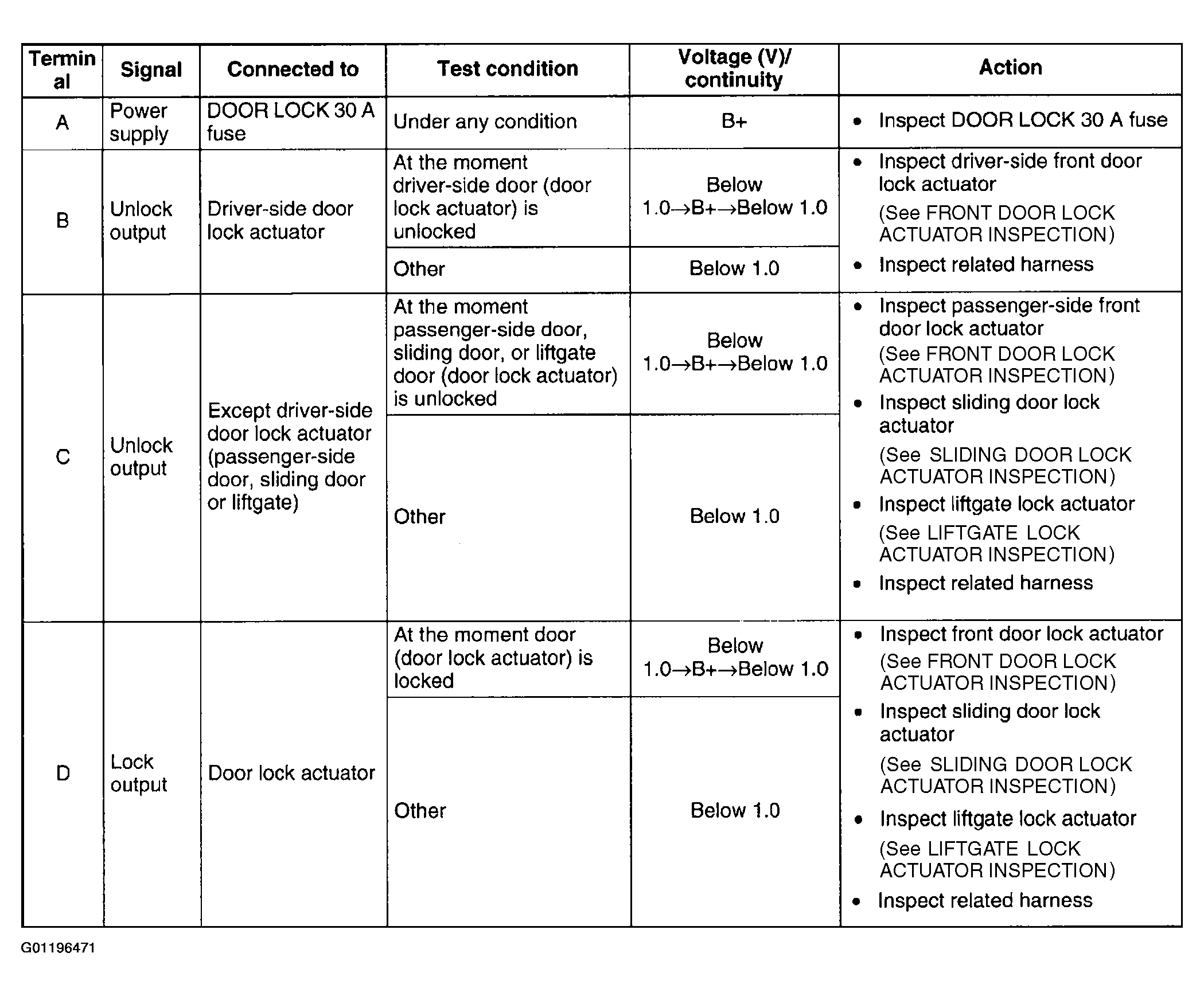

Fig 2: Terminal Voltage Table - Door Lock Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

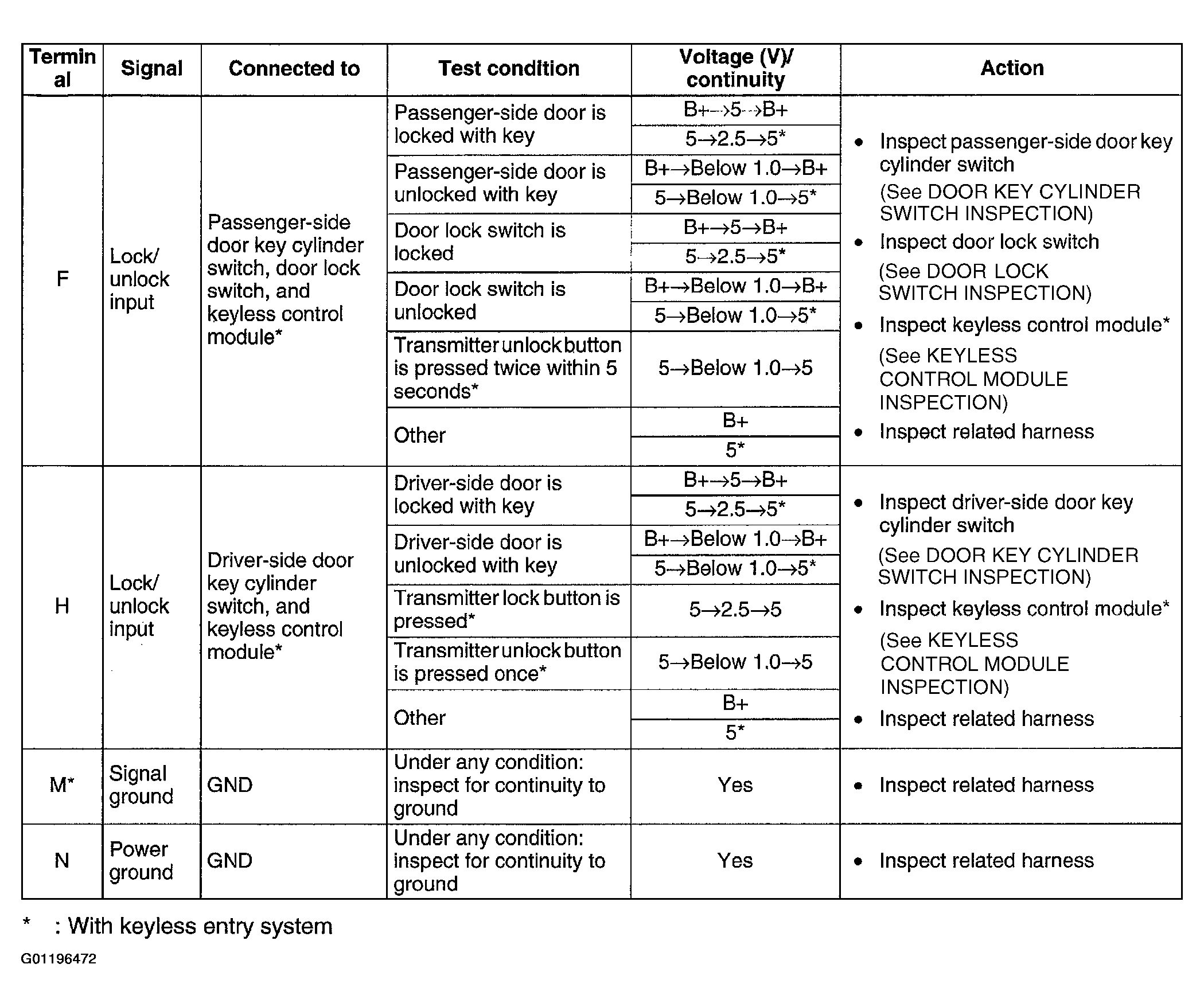

Fig 3: Terminal Voltage Table - Door Lock Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
