Inspection Using An Oscilloscope (Reference) Wheel Speed
›
Vehicle Speed Output
Vehicle Speed Output
ABS HU/CM terminal: Q (+) - AA (-)
Oscilloscope setting: 2 V/DIV (Y), 25 ms/DIV (X)
Vehicle condition: Driving 25 km/h [15.5 MPH]
NOTE:
As vehicle speed increases, period of wave will shortens.

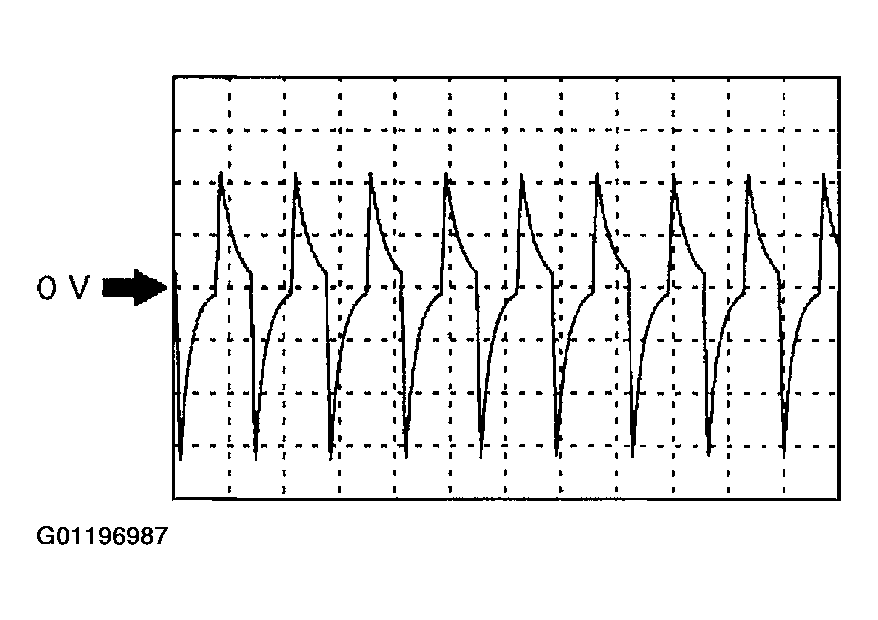

Fig 1: Vehicle Speed Output Wave Pattern
Courtesy of MAZDA MOTORS CORP.
