Oil Pan Installation Note

1. Install the oil pan bolts and studs as shown.

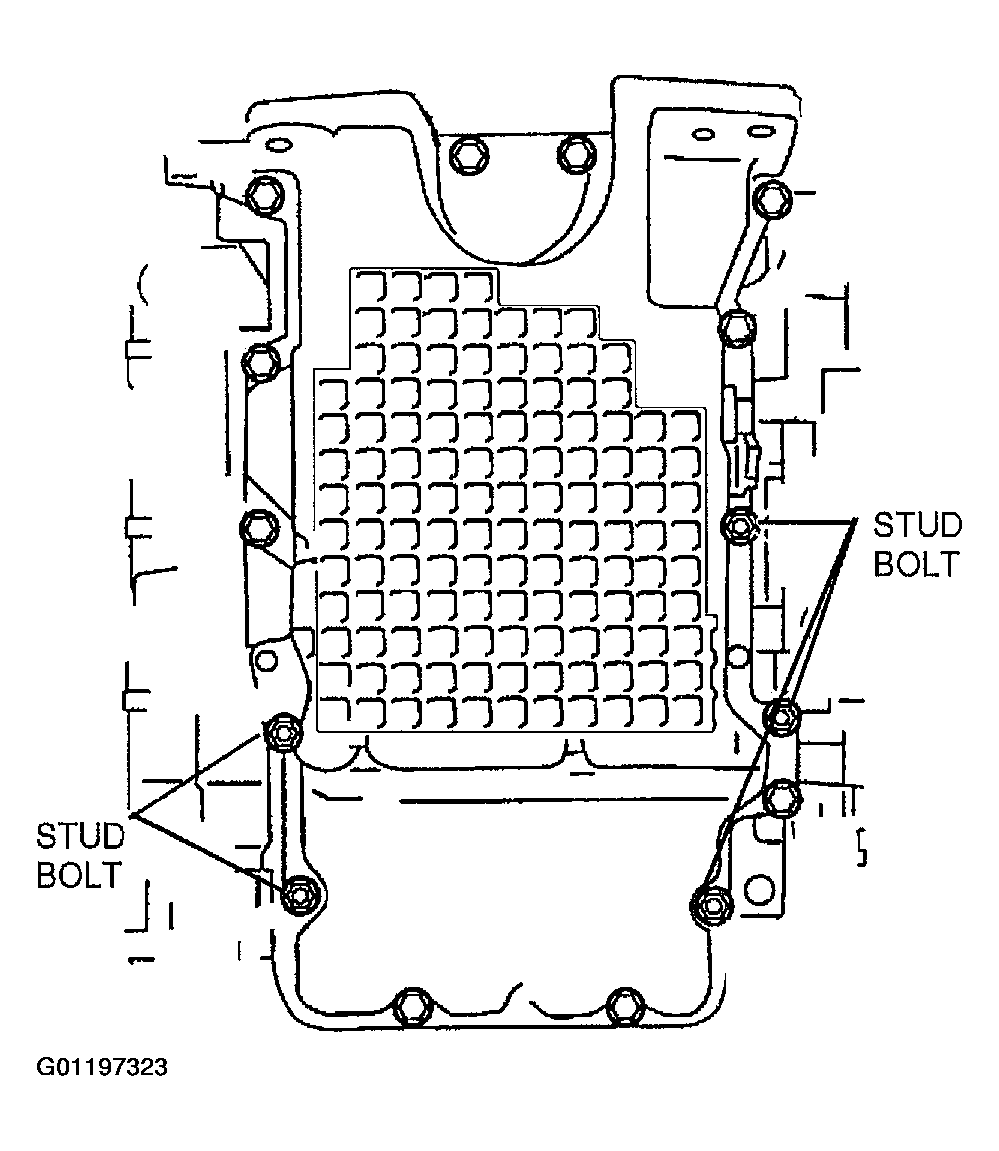

   Fig 1: Locating Oil Pan Bolts/Studs

   Courtesy of MAZDA MOTORS CORP.
2. Tighten the transaxle housing bolts to oil pan.
   Fig 2: Tightening Transaxle Housing-To-Oil Pan Bolts

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the oil pan bolts and studs in several passes in the order shown.

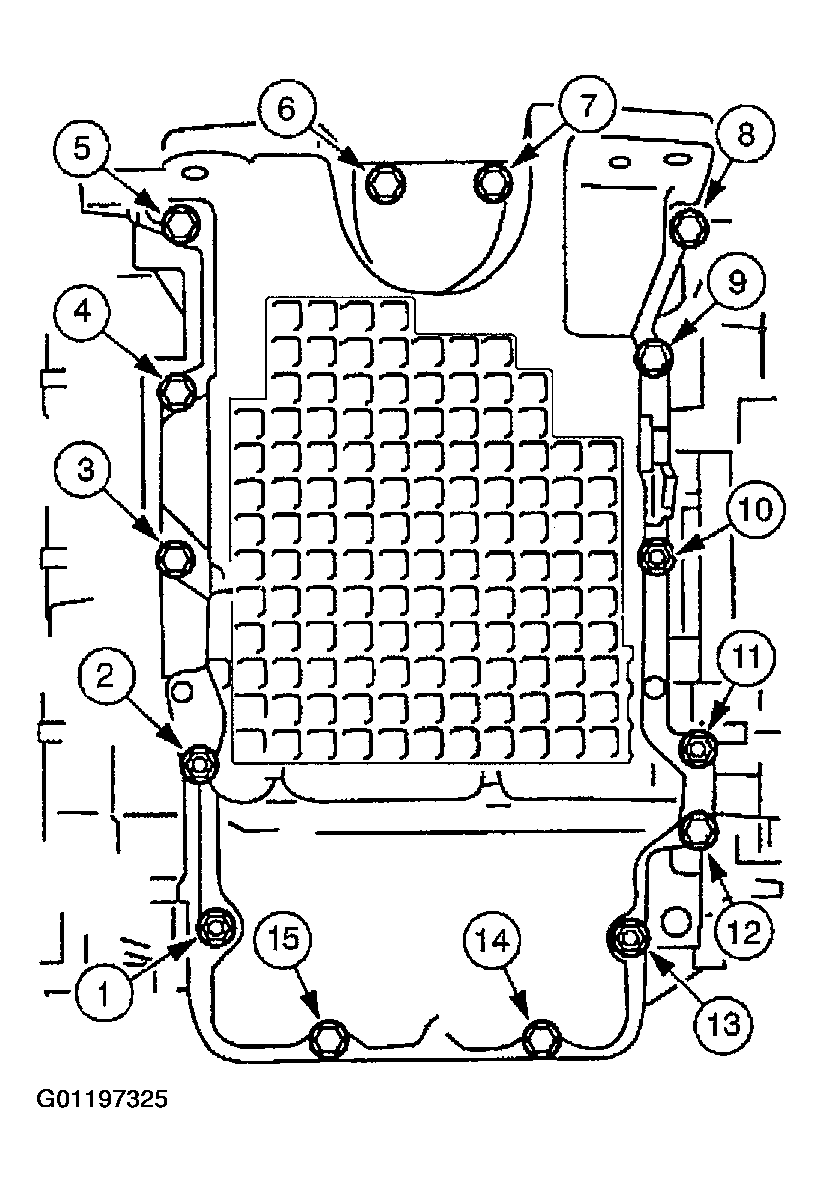

Fig 3: Oil Pan Bolt/Stud Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
