Bearing Cap Assembly Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

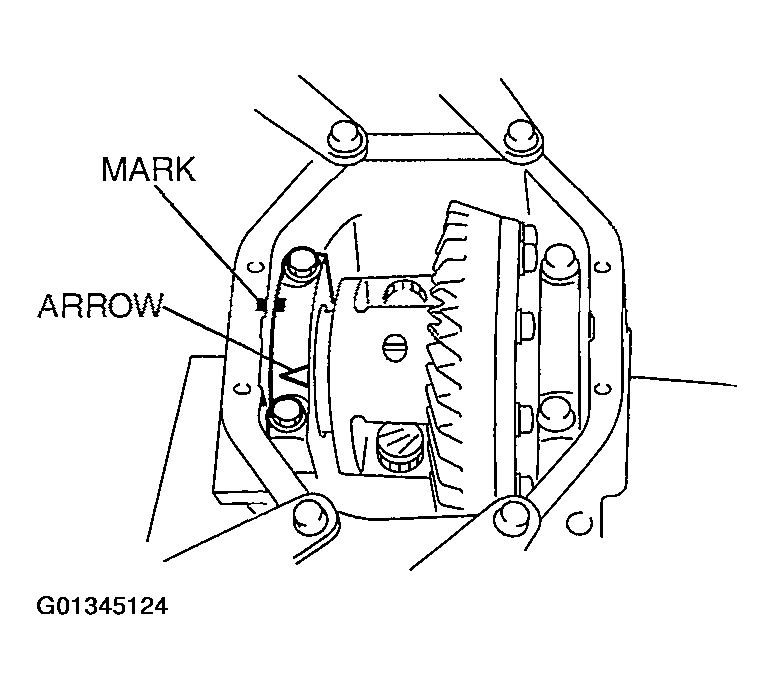

- Align the bearing cap alignment marks and assemble the bearing cap with the arrow facing outward.
Tightening torque
72.6-106.9 N.m
(7.41-10.91 kgf.m, 53.5-78.84 ft.lb)
- Perform the drive pinion and ring gear tooth connect inspection.
