Removal & Installation

Disconnect negative battery cable. Remove passenger floor mat. Disconnect TCM harness connectors. Remove TCM cover panel, then TCM. See Fig 1. To install TCM, reverse removal procedure.

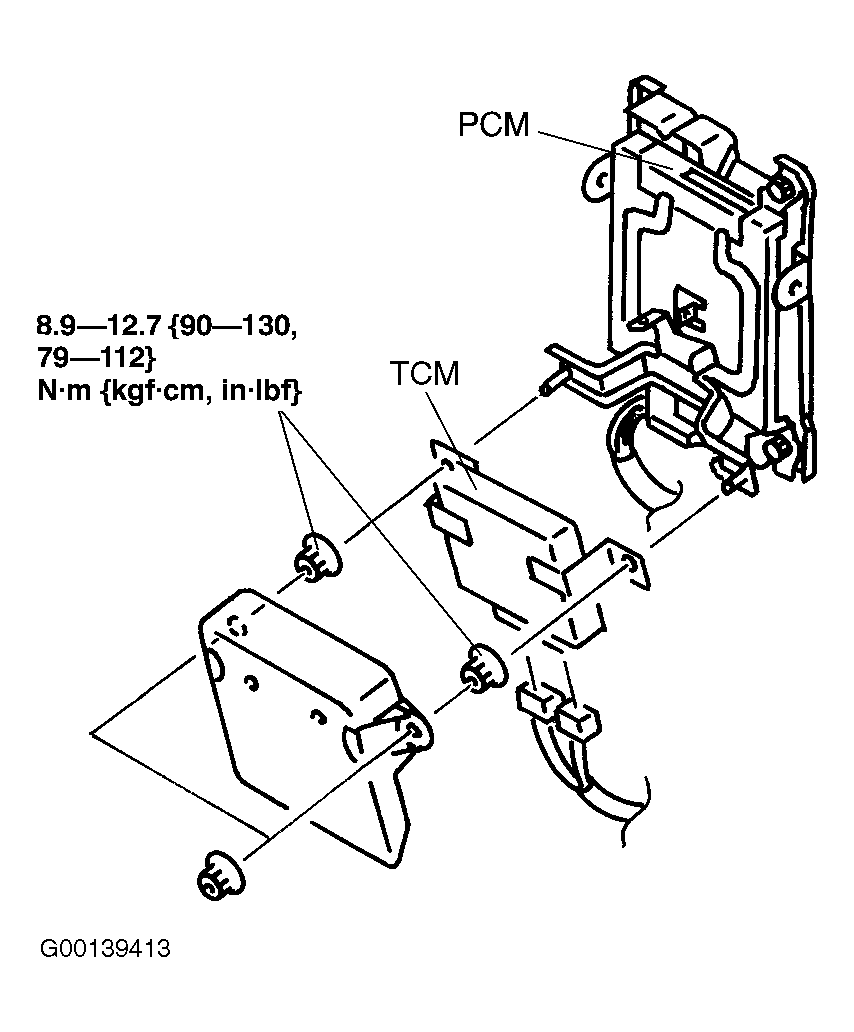

Fig 1: Removing & Installing TCM

Courtesy of MAZDA MOTORS CORP.
