Door Lock Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.
    Fig 1: Door Lock Control Module Removal Order Table
    G01173689Courtesy of MAZDA MOTORS CORP.

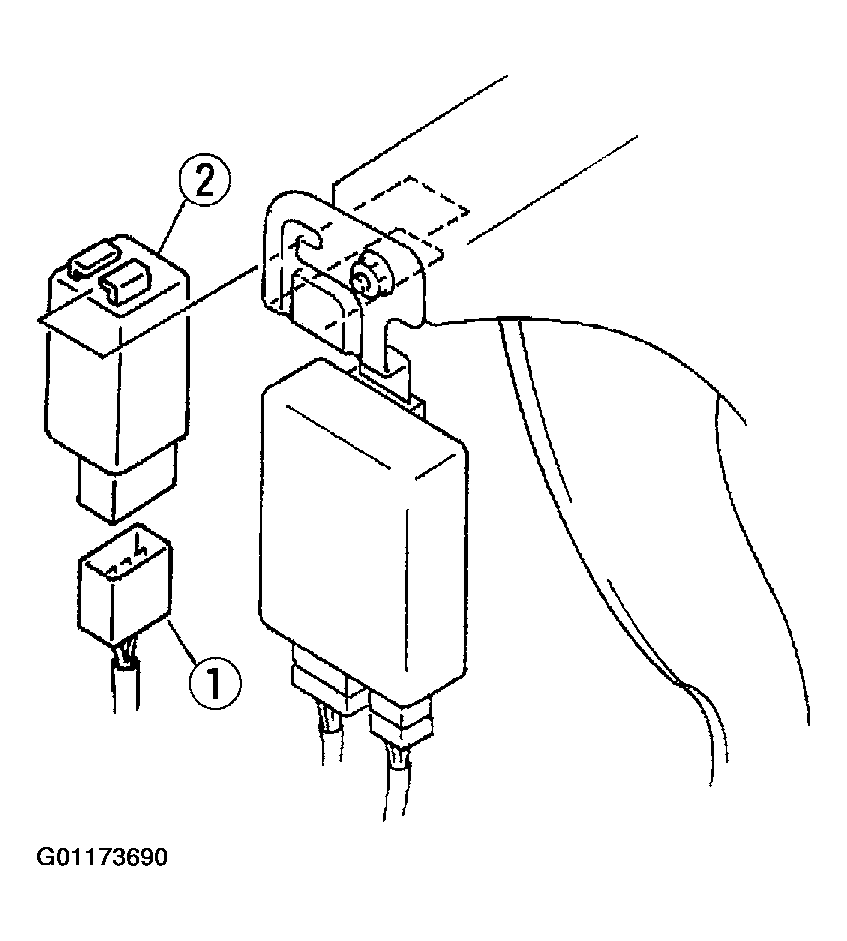

    Fig 2: Removing Door Lock Control Module
    G01173690Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
