Cruise Control Main Switch Inspection

Remove the cruise control main switch. See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION .
Inspect for continuity between the cruise control main switch terminals using an ohmmeter.
If not as specified, replace the cruise control main switch.

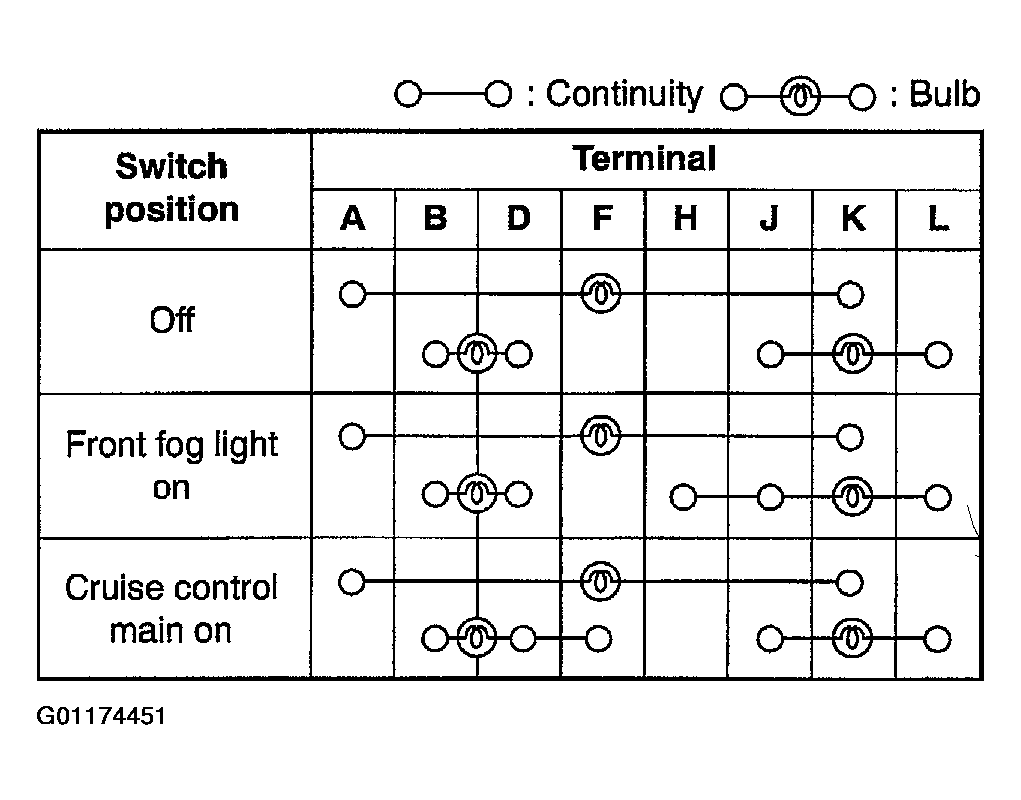

Fig 1: Inspecting Cruise Control Main Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Cruise Control Main Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
