Cruise Control Switch Inspection

Remove the combination switch. See COMBINATION SWITCH REMOVAL/INSTALLATION .
Measure the resistance between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the wiper lever.

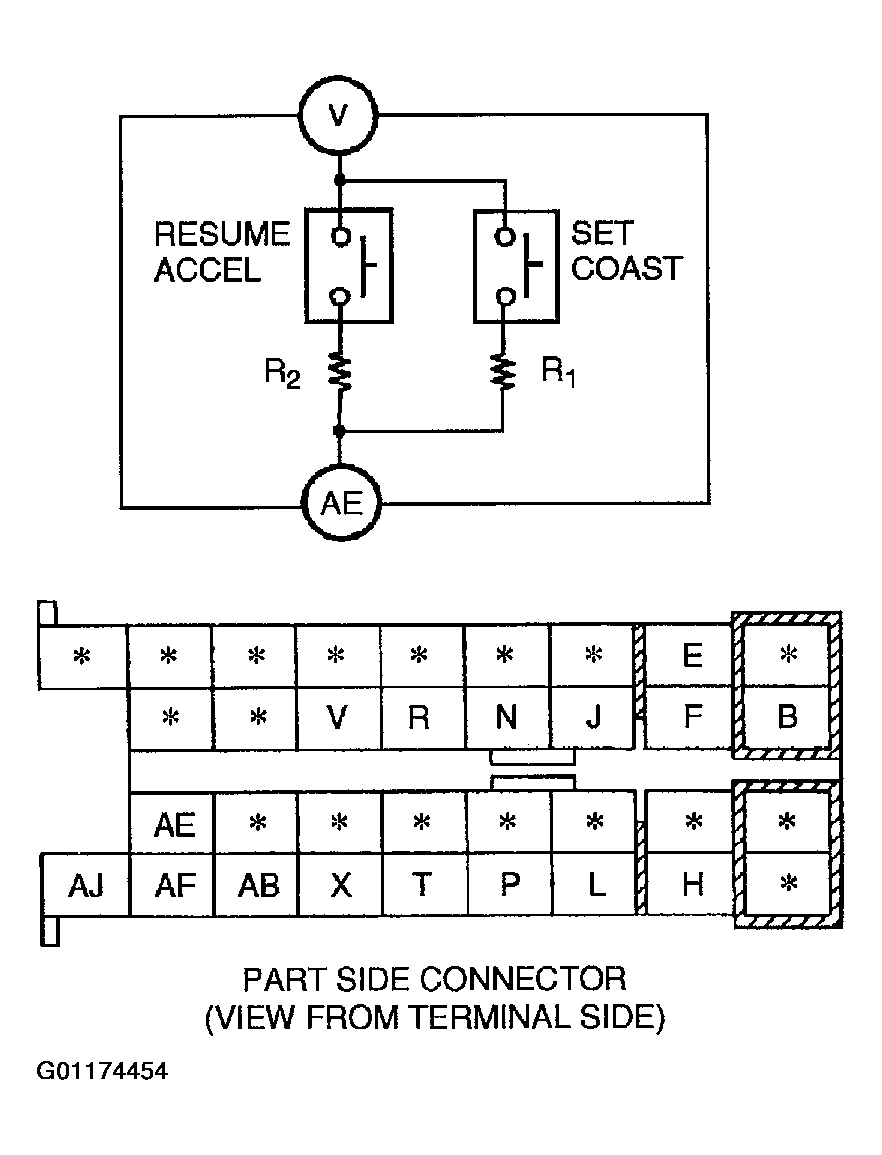

Fig 1: Inspecting Cruise Control Switch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Cruise Control Switch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
