Abs HU/Cm Removal/Installation
›
Notes
Abs HU/Cm Removal/Installation: Notes
Remove in the order indicated in the table.
Install in the reverse order of removal.

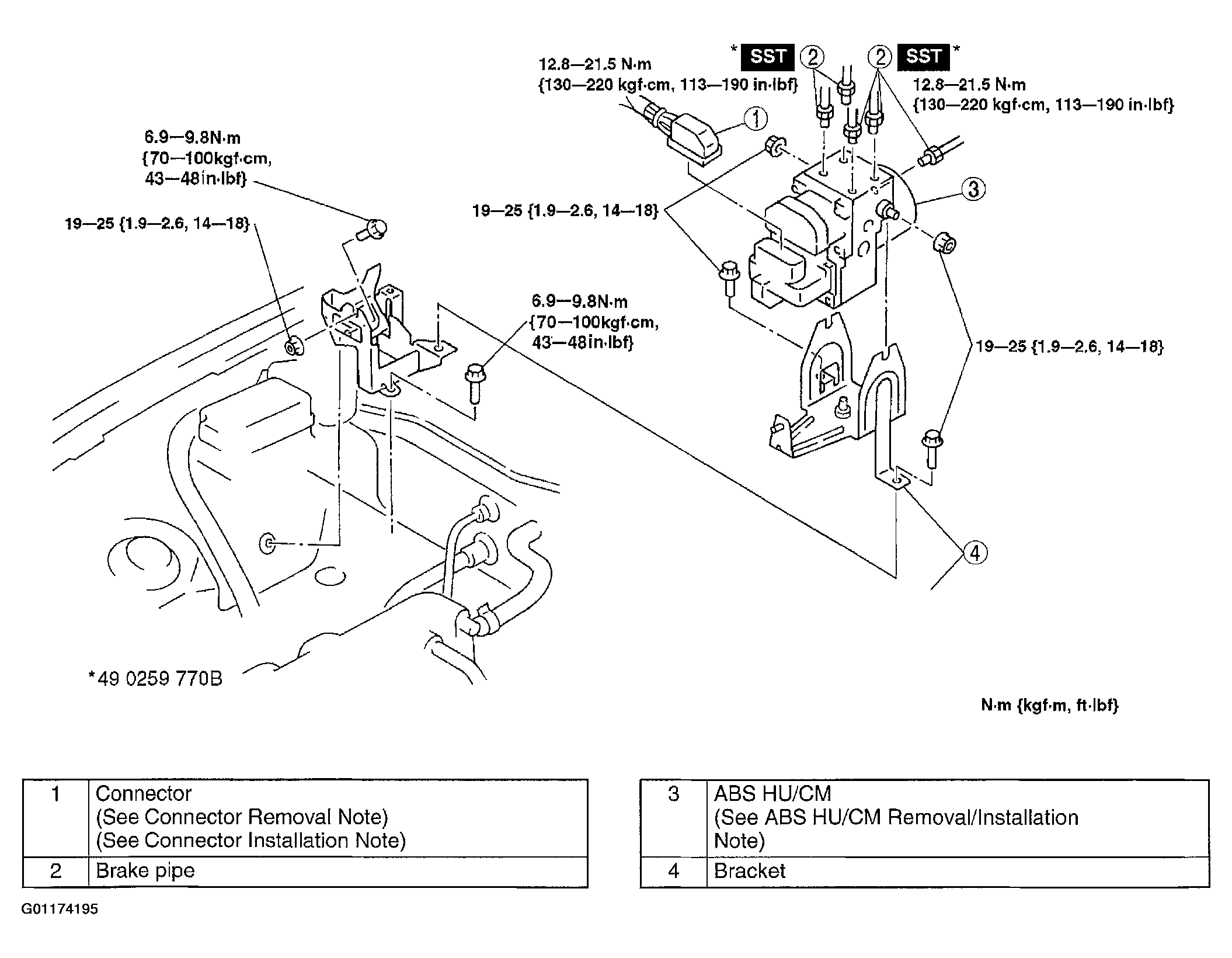

Fig 1: ABS HU/CM Removal & Installation Sequence Table
Courtesy of MAZDA MOTORS CORP.
