Circuit Protection Devices

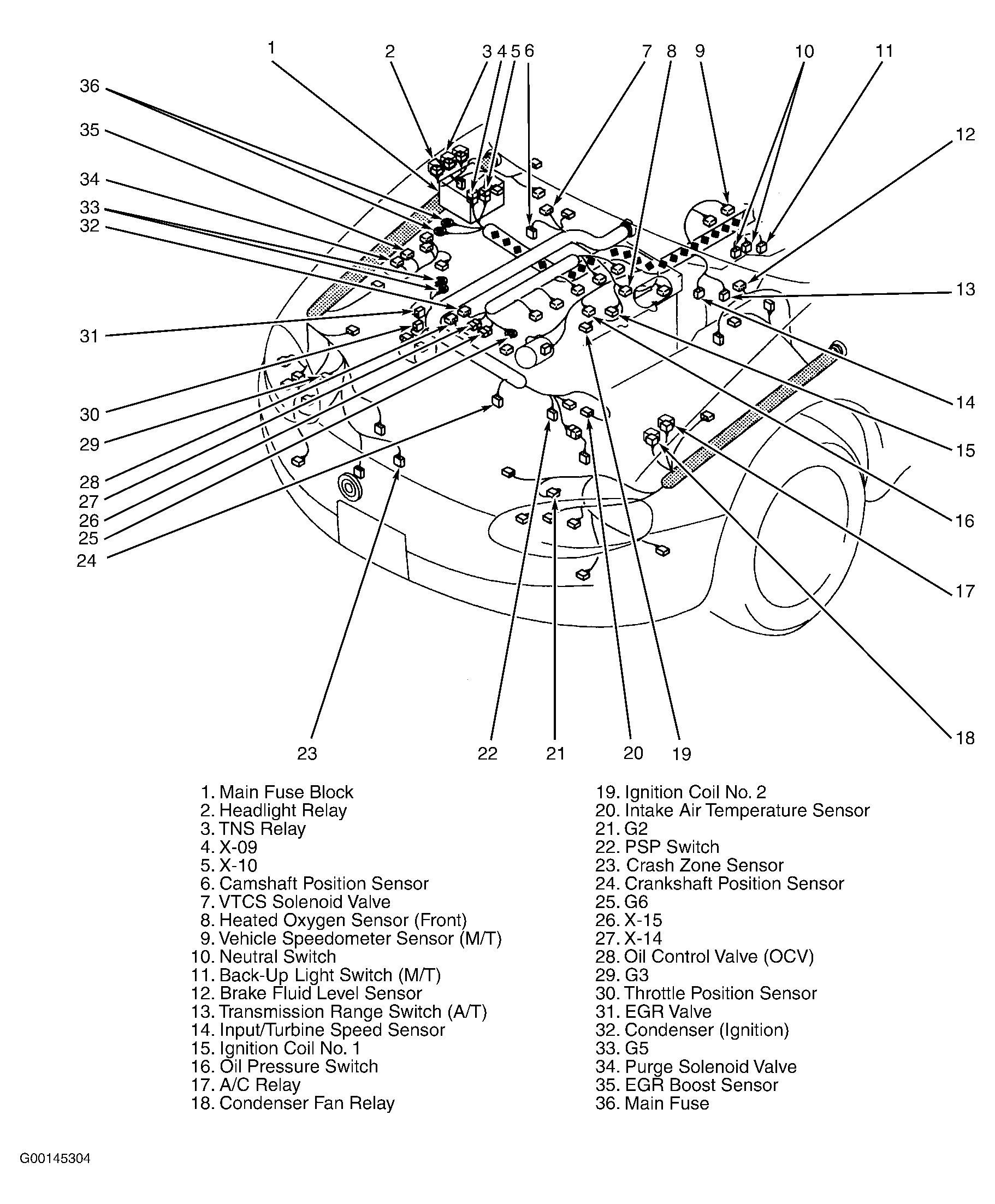

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Fuse Block | Behind left side of dash. See Figure . |
| Fusible Link | On right rear of engine compartment, behind main fuse block. |
| Main Fuse | On right rear of engine compartment. See Figure . |
| Main Fuse Block | On right rear of engine compartment. See Figure . |
| Thermal Protector | On left front of engine compartment. |
