Cam Ring Assembly Note

  1. Install the cam ring with the identification mark facing downward.

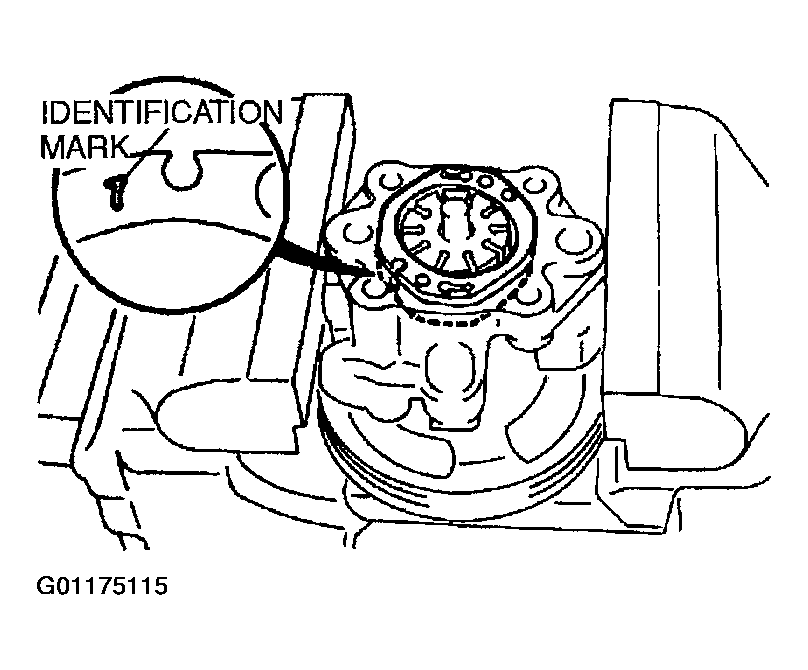

Fig 1: Assembling Cam Ring
G01175115Courtesy of MAZDA MOTORS CORP.
