Power Steering Oil Pump Removal/Installation

1. Remove the cooling fan. See RADIATOR REMOVAL/INSTALLATION .
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
4. Adjust the drive belt. See DRIVE BELT ADJUSTMENT .

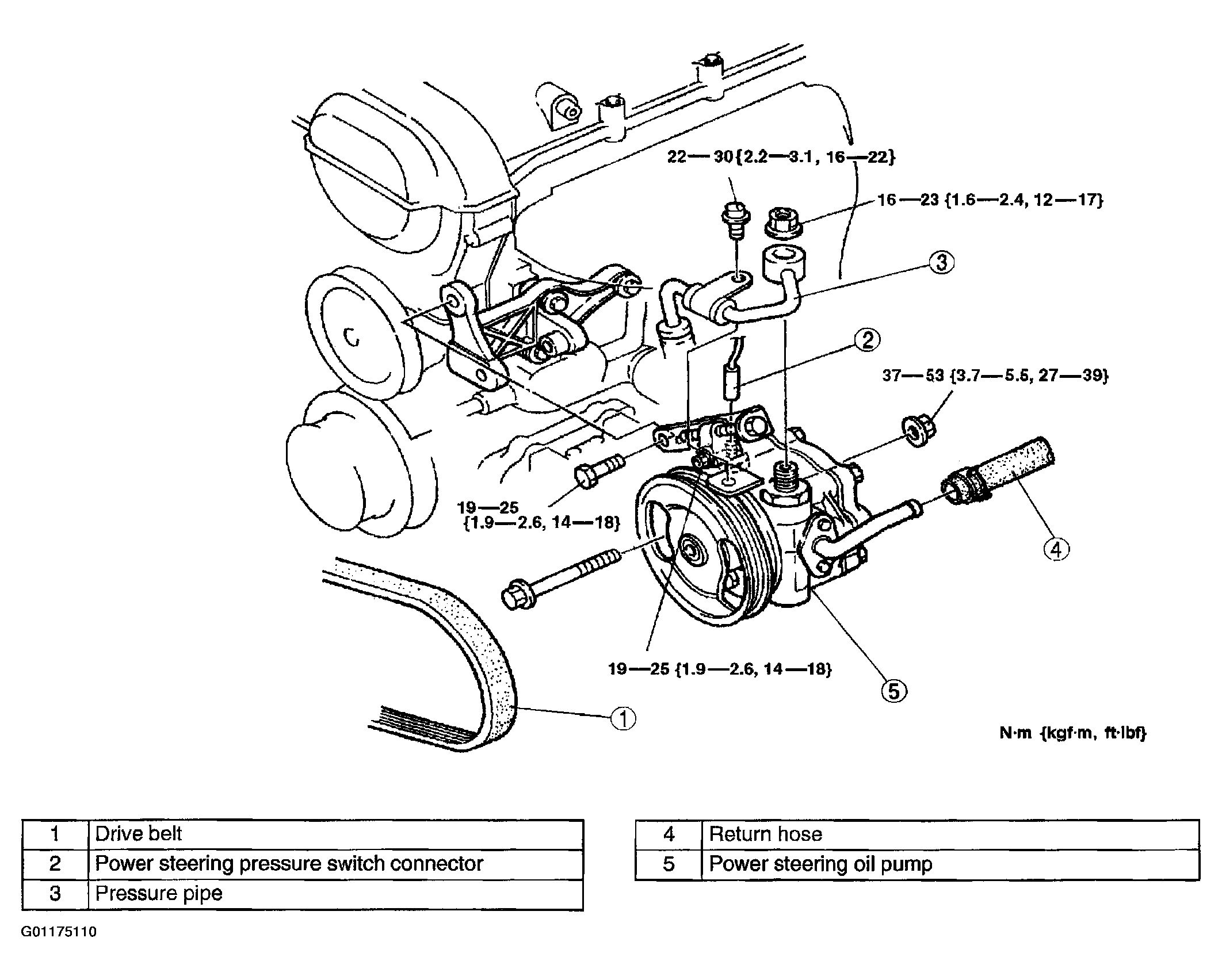

Fig 1: Removing & Installing Power Steering Oil Pump

Courtesy of MAZDA MOTORS CORP.
