Steering Wheel And Column Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, verify that the horn sounds.
    • If the horn does not sound, remove the air bag module and connect the module connectors.

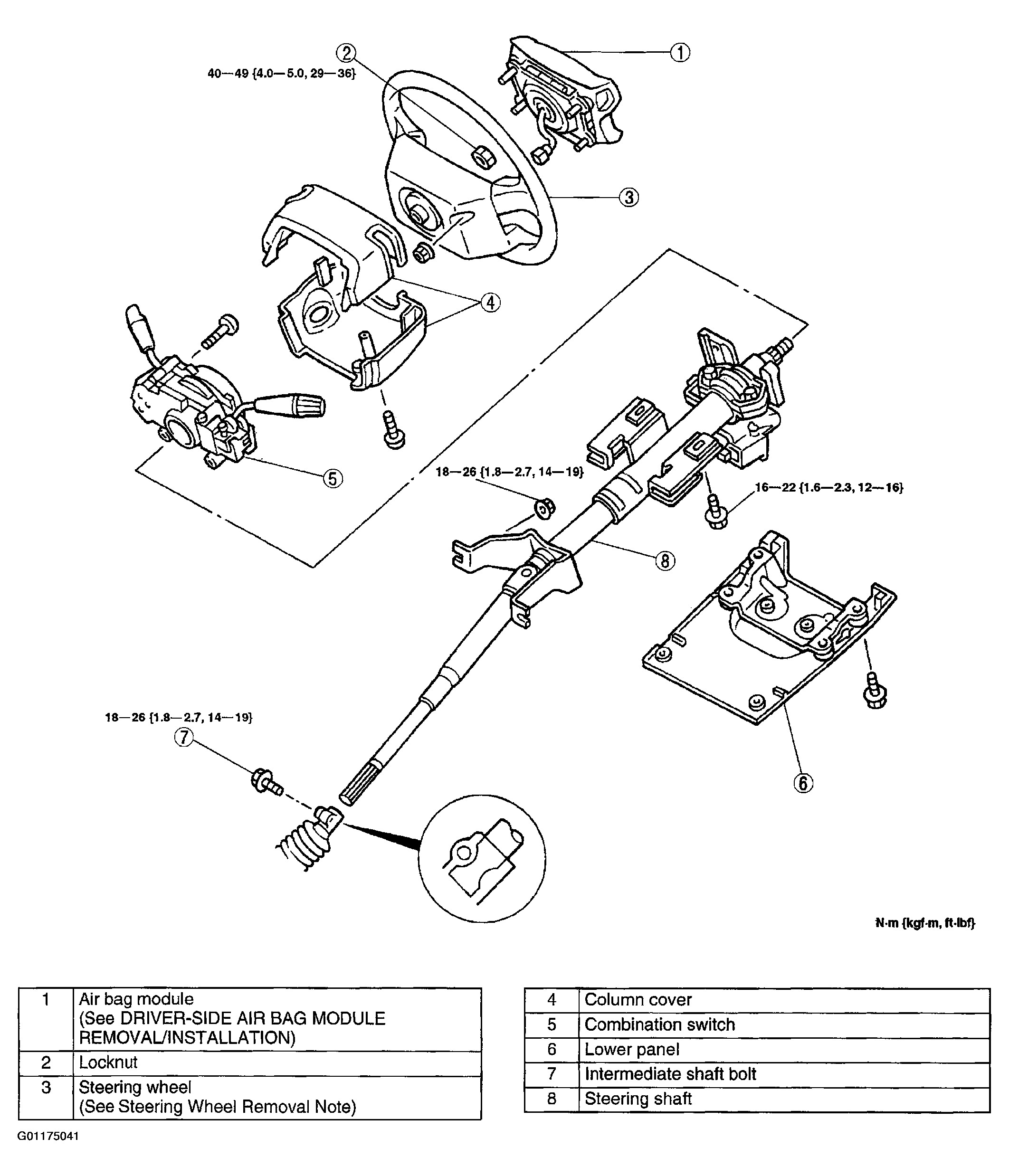

Fig 1: Removing & Installing Steering Wheel & Column
G01175041Courtesy of MAZDA MOTORS CORP.
