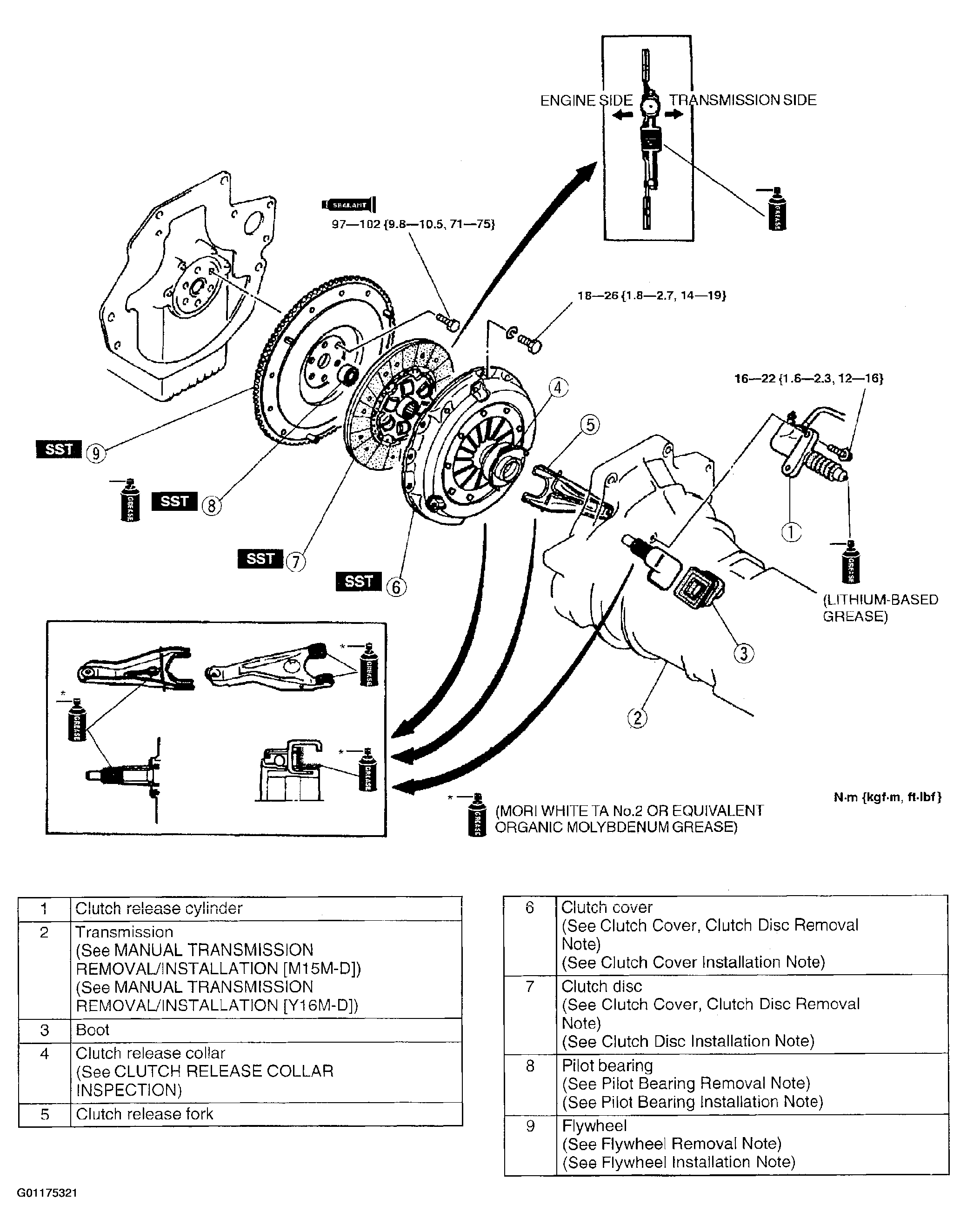

Clutch Unit Removal/Installation: Notes
NOTE:
- The clutch release cylinder can be removed from the transmission with the clutch pipe connected.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
