Power Outside Mirror Switch Removal/Installation: Notes

Disconnect the negative battery cable.
Remove in the order indicated in the table.

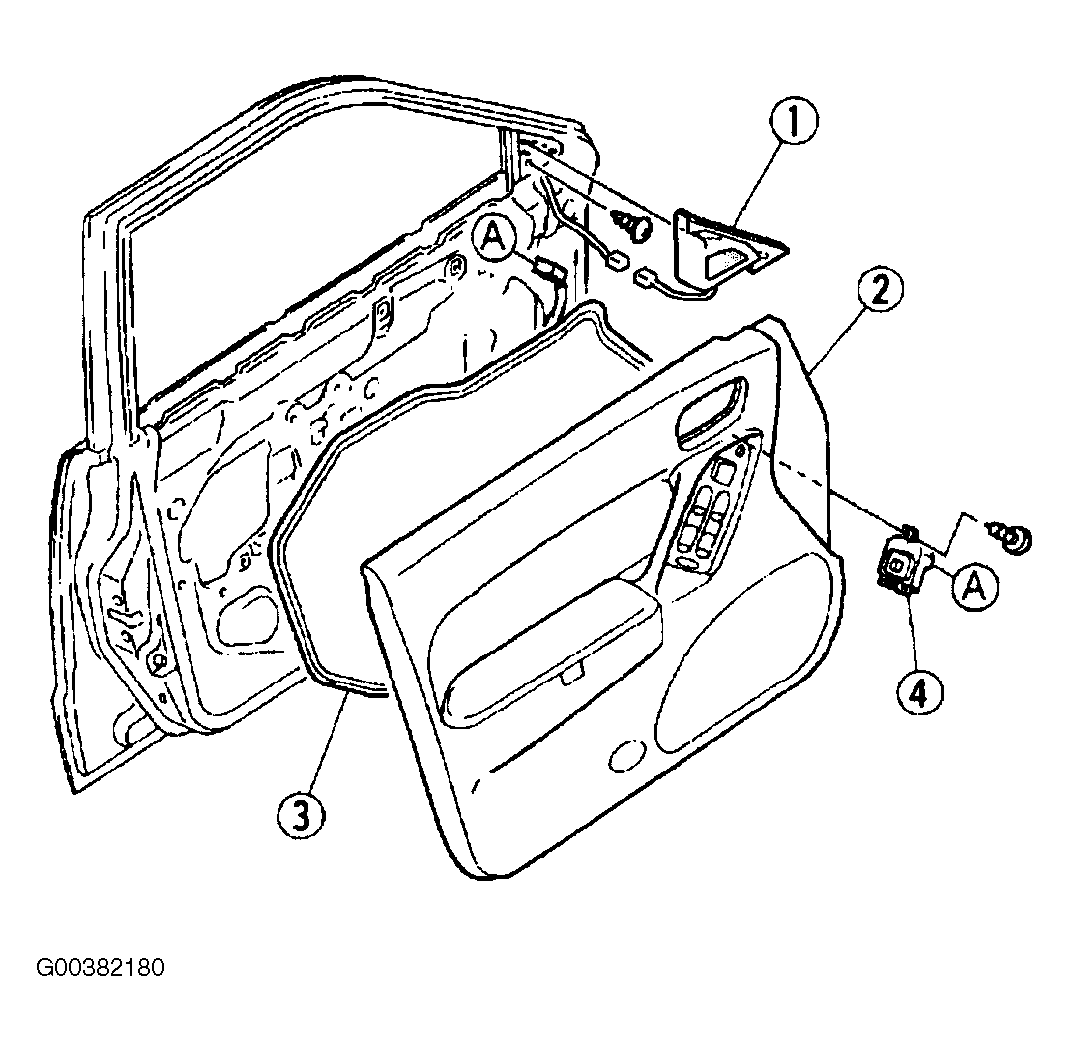

Fig 1: Removing Outside Mirror Switch
Courtesy of MAZDA MOTORS CORP.
1. Inner garnish. See INNER GARNISH REMOVAL NOTE . See INNER GARNISH INSTALLATION NOTE .
2. Front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
3. Door screen. See DOOR SCREEN REMOVAL NOTE .
4. Power outside mirror switch.
Install in the reverse order of removal.
