Symptom Troubleshooting: Notes

• Verify the symptom, and perform troubleshooting according to the appropriate number.

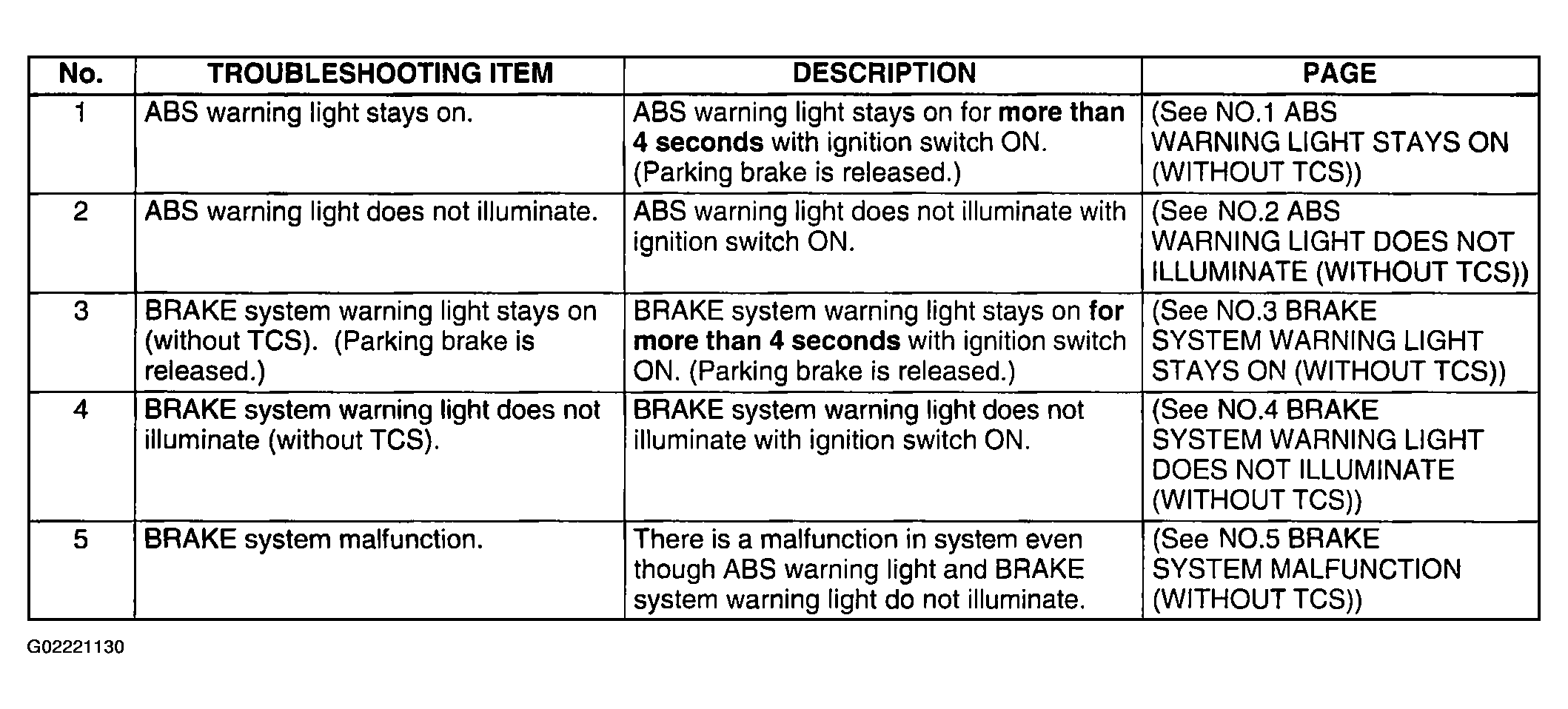

Fig 1: Symptom Troubleshooting Chart (Without TCS)

Courtesy of MAZDA MOTORS CORP.

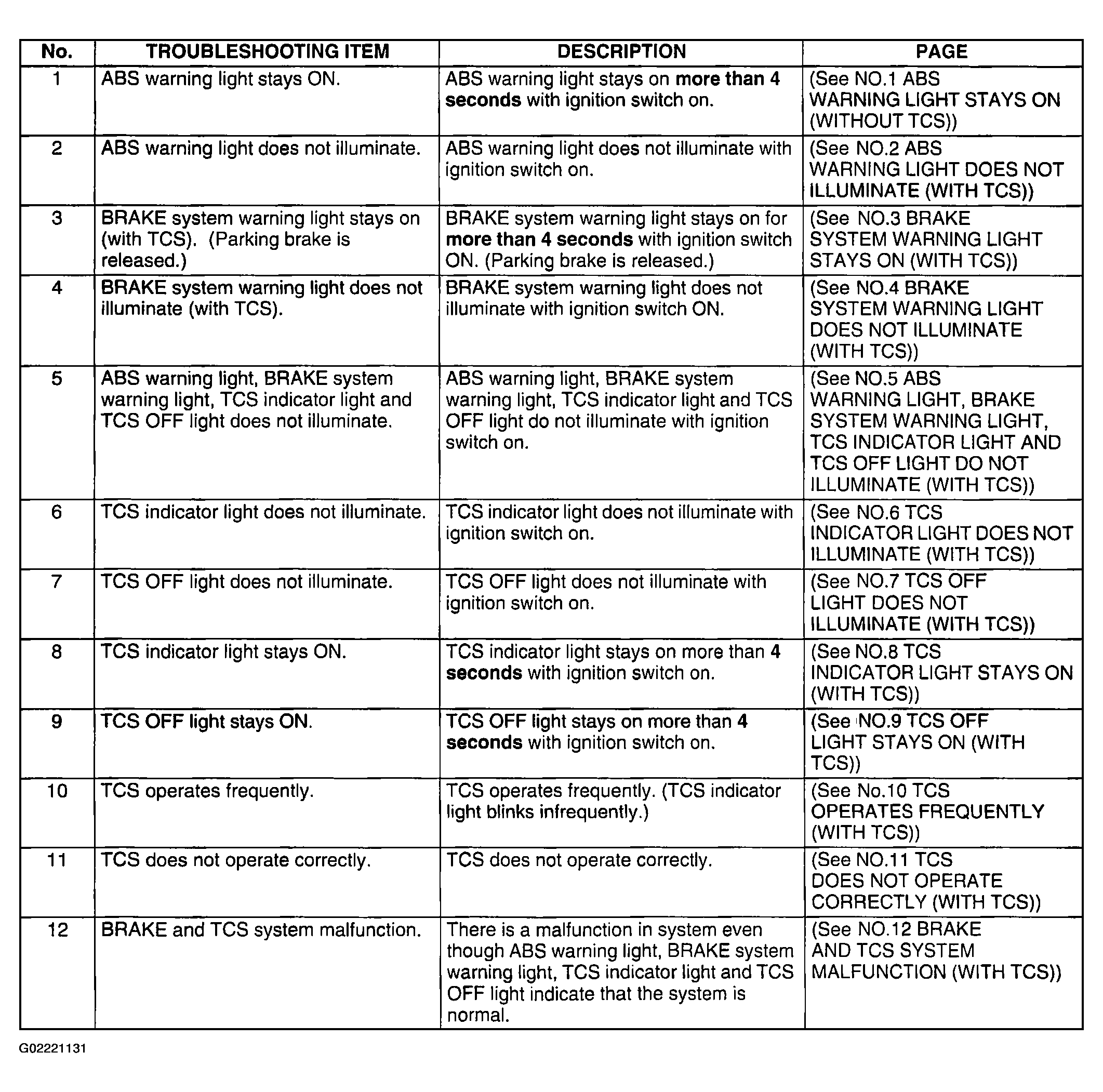

Fig 2: Symptom Troubleshooting Chart (With TCS)

Courtesy of MAZDA MOTORS CORP.
