Disassembly & Reassembly

NOTE: Adaptor Wrench Set (49 T018 0A0) is required for this procedure. See Figure .

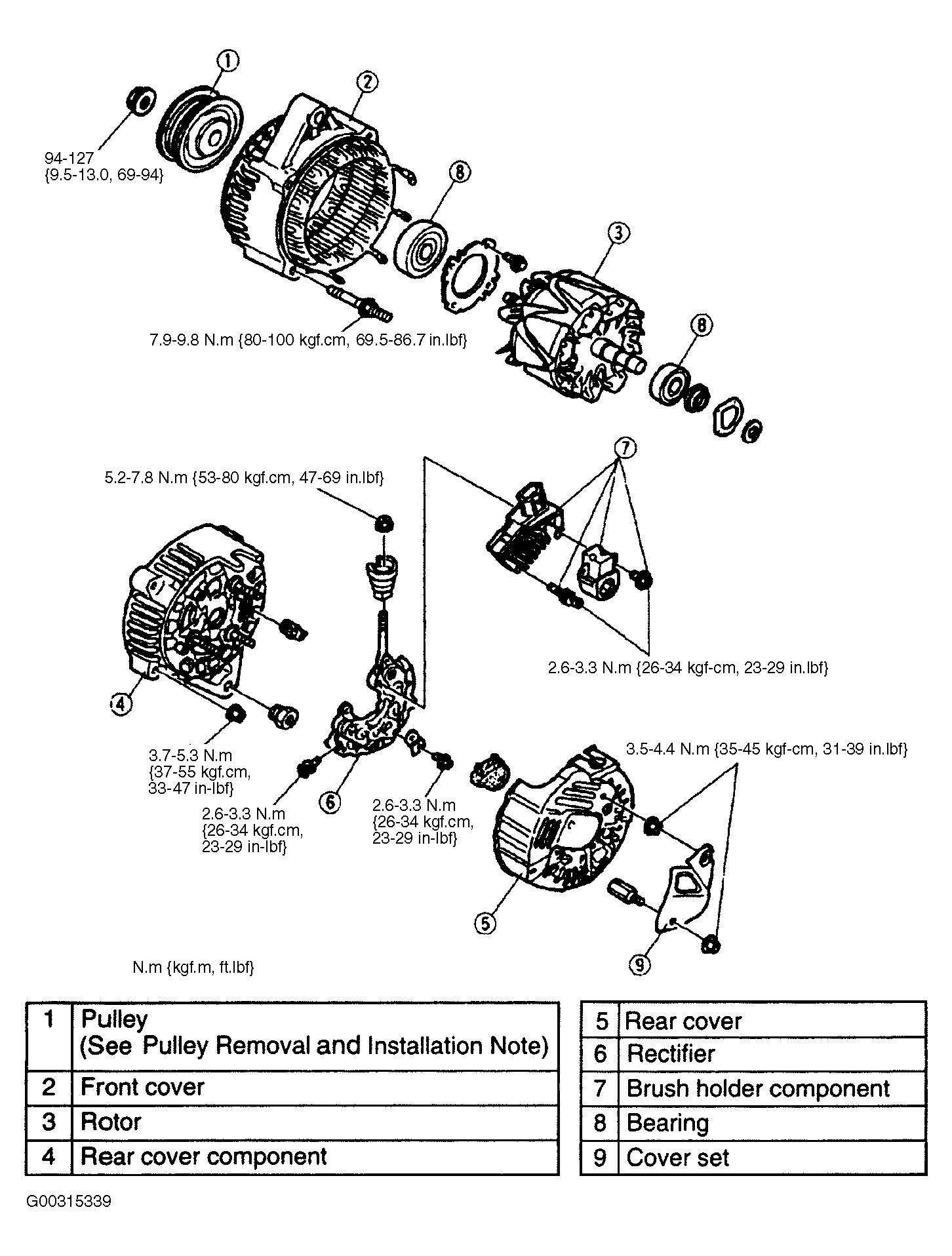

Disassemble in the order indicated in the figure. See Figure . Inspect all parts and repair or replace as necessary. Assemble in the reverse order of disassembly.
