Engine-Related System
›
Keyless Control System
Keyless Control System

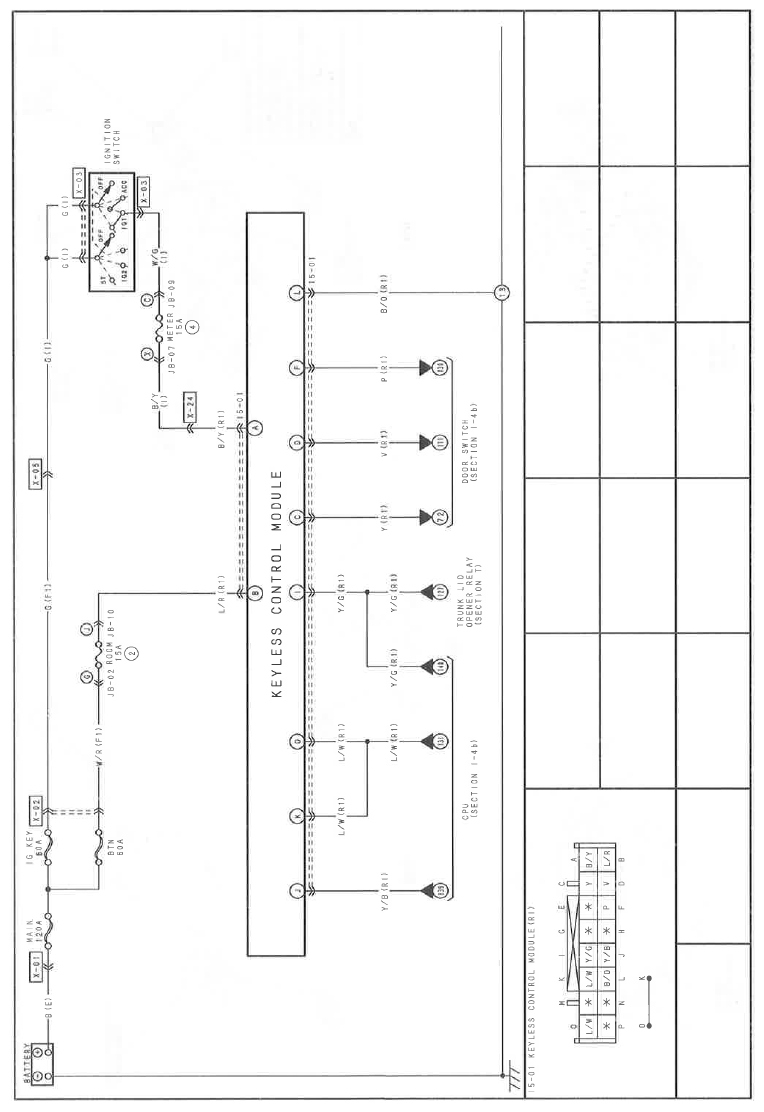

Fig 1: Keyless Control System Wiring Diagram (I-5; 1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Keyless Control System Wiring Diagram (I-5; 2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
