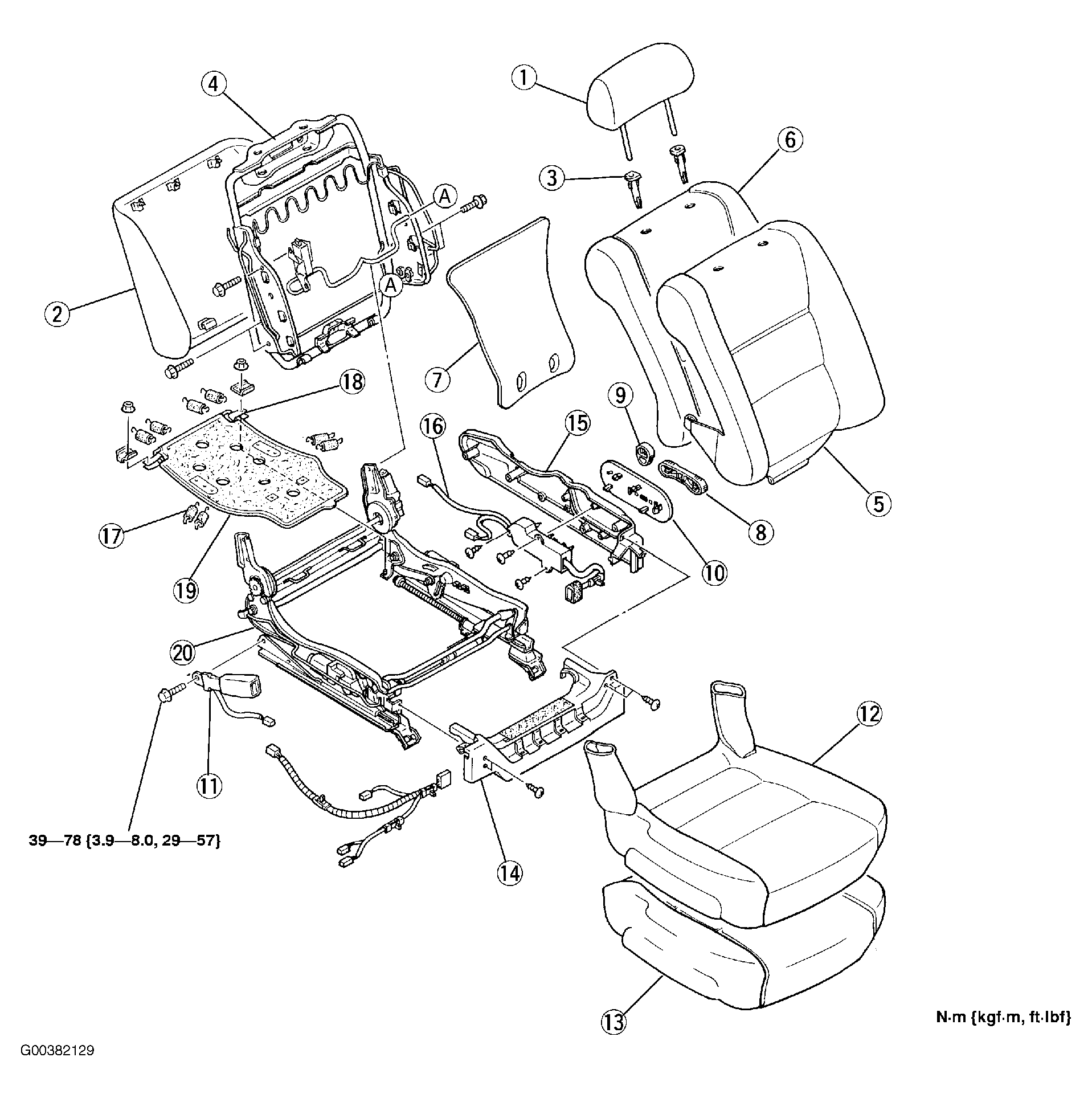

Front Seat Disassembly/Assembly: Notes

• Disassemble in the order indicated in the illustration.
• Assemble in the reverse order of disassembly.

1. Headrest.
2. Seat back cover. See SEAT BACK COVER DISASSEMBLY NOTE
3. Pole guide. See POLE GUIDE DISASSEMBLY NOTE  .
4. Seat back frame. See SEAT BACK FRAME DISASSEMBLY NOTE  .
5. Seat back trim. See SEAT BACK TRIM DISASSEMBLY NOTE  .
6. Seat back pad.
7. Seat back hardboard. See SEAT BACK HARDBOARD DISASSEMBLY NOTE  .
8. Slide and lifter switch knob.
9. Recliner switch knob.
10. Switch bezel. See SWITCH BEZEL DISASSEMBLY NOTE  .
11. Front buckle.
12. Seat cushion trim. See SEAT CUSHION TRIM DISASSEMBLY NOTE  .
13. Seat cushion pad.
14. Front cover.
15. Side cover.
16. Power seat switch.
17. Spring.
18. Band.
19. Seat cushion hardboard.
20. Seat cushion frame.
