Front Bumper Removal Note

  1. While supporting the connection between the front bumper and bracket, pull the front bumper forward to disengage the connection.
    NOTE: The connection between the front bumper and bracket does not disengage until the front bumper is pulled forward. Be sure to pull the front bumper forward to disengage it from the bracket.

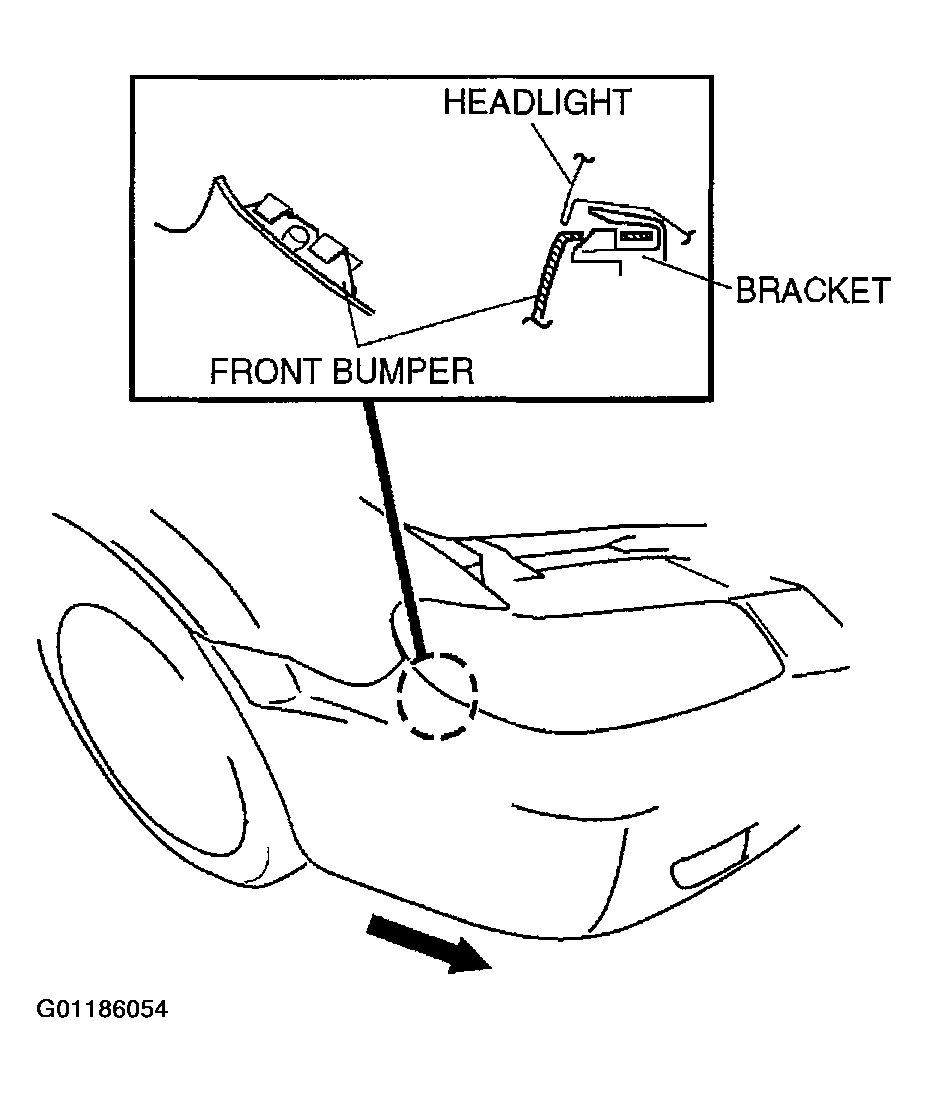

    Fig 1: Disengaging Bumper From Bracket
    G01186054Courtesy of MAZDA MOTORS CORP.
  2. Remove the front bumper.
