Instrumentation/Driver Info Technical Data
Instrumentation/Driver Info Technical Data

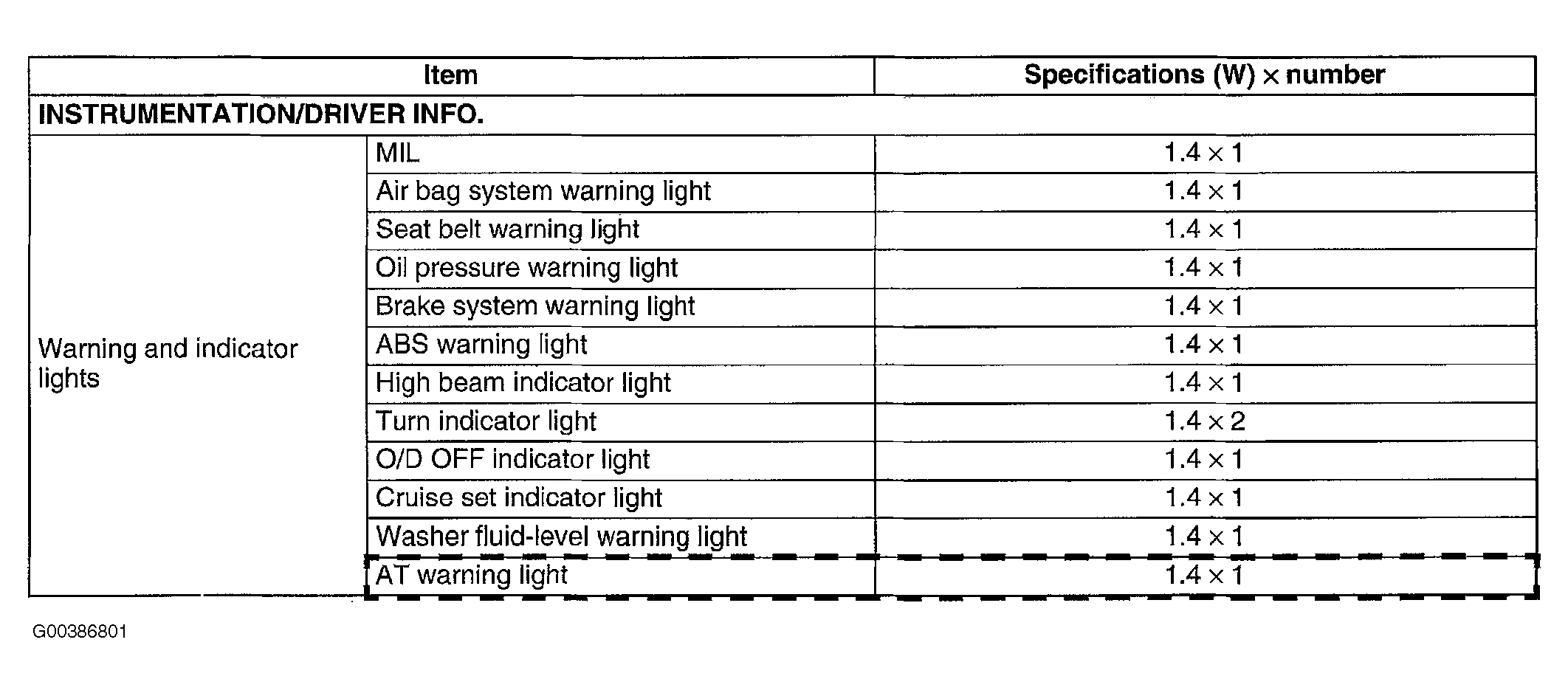

Fig 1: Instrumentation/Driver Info Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
