9-Pin Transaxle Connector End View
9-Pin Transaxle Connector End View

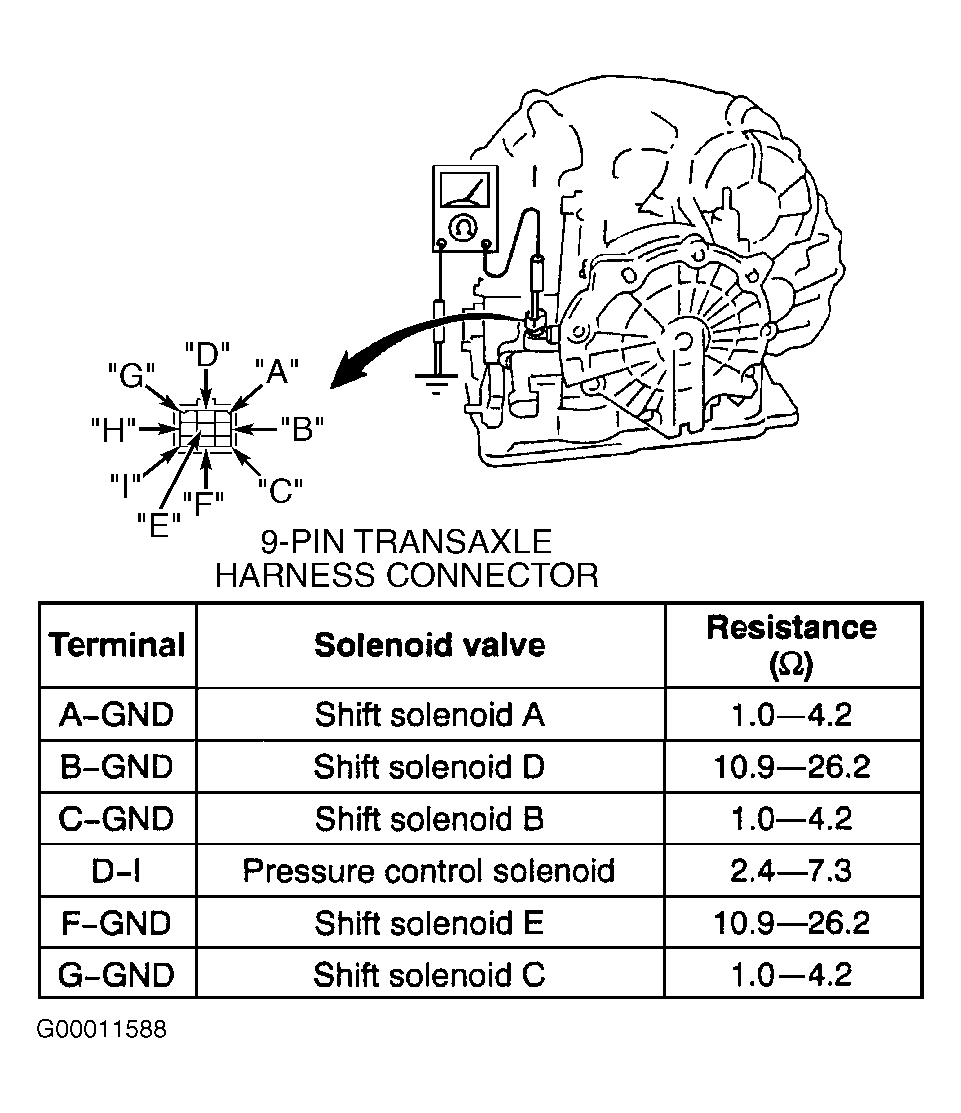

Fig 1: 9-Pin Transaxle Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
