Center Panel Removal/Installation

Disconnect the negative battery cable.
Remove the glove compartment.
For vehicles equipped with the semi-logic type climate control unit, disconnect the wires for the heater unit. See A/C-HEATER CONTROL PANEL .
Push out clip A from behind the dashboard.

Fig 1: Identifying Center Panel Clip A
Courtesy of MAZDA MOTORS CORP.
Pull the center panel, then remove clips B and pins C from the dashboard.

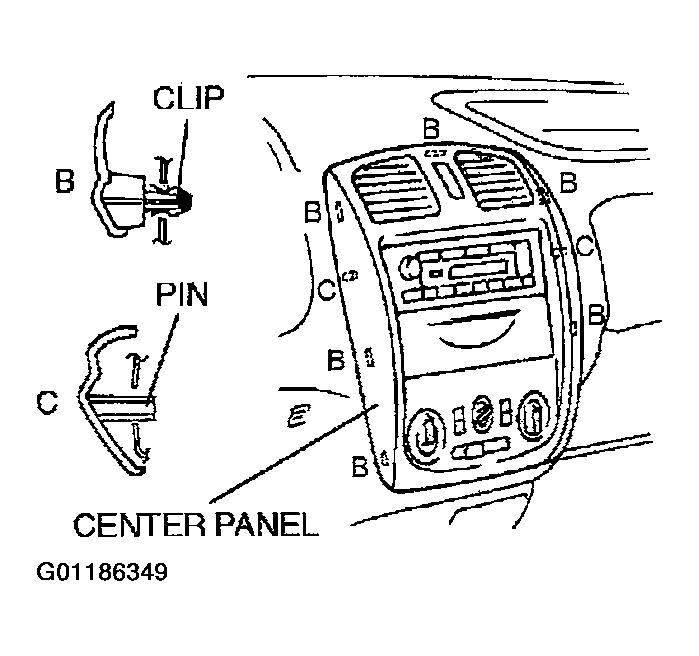

Fig 2: Identifying Center Panel Clips B & C
Courtesy of MAZDA MOTORS CORP.
Disconnect the hazard warning switch connector and climate control unit connector.
Install in the reverse order of removal.
