Console Adjustment

CAUTION: Take care to install the console and the center panel so that there is no interference which may cause noise.

Loosen screws A.

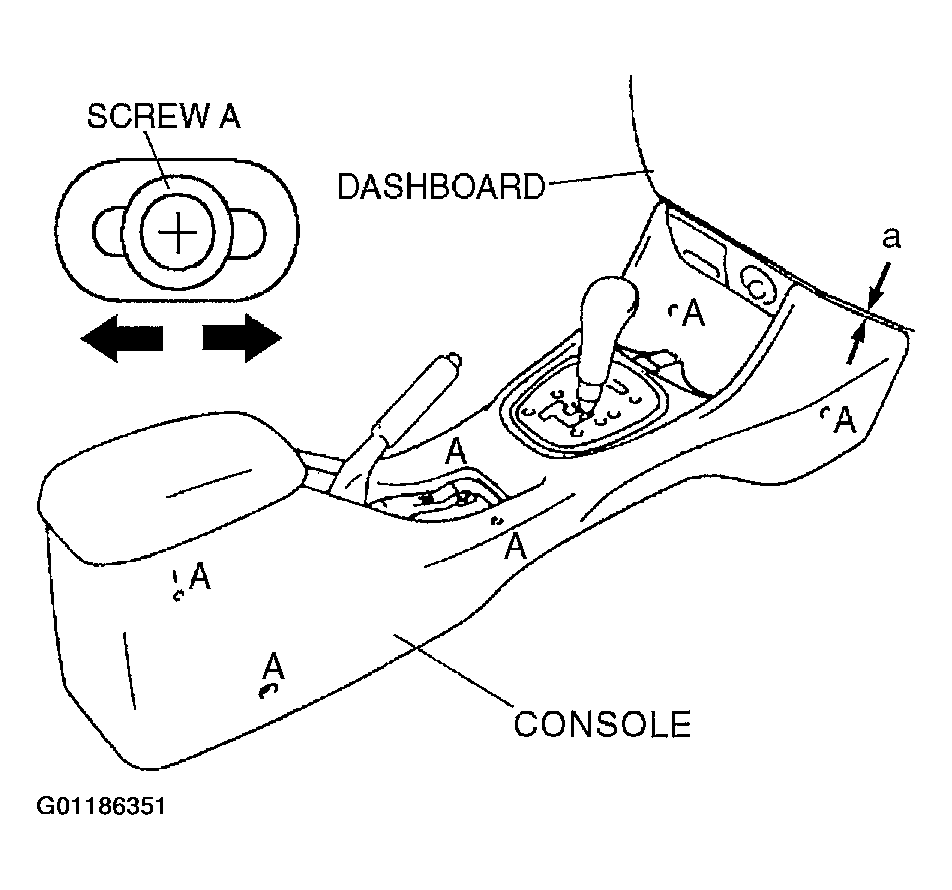

Fig 1: Locating A Screws & Clearance "a"
Courtesy of MAZDA MOTORS CORP.
Slide the console indicated by the arrow and measure the gap between the console and the dashboard.
1. Clearance
2. a: 0.2-1.8 mm {0.0008-0.07 in}
Tighten screws A.
