Console Disassembly/Assembly

Disassemble in the order indicated in the illustrations.

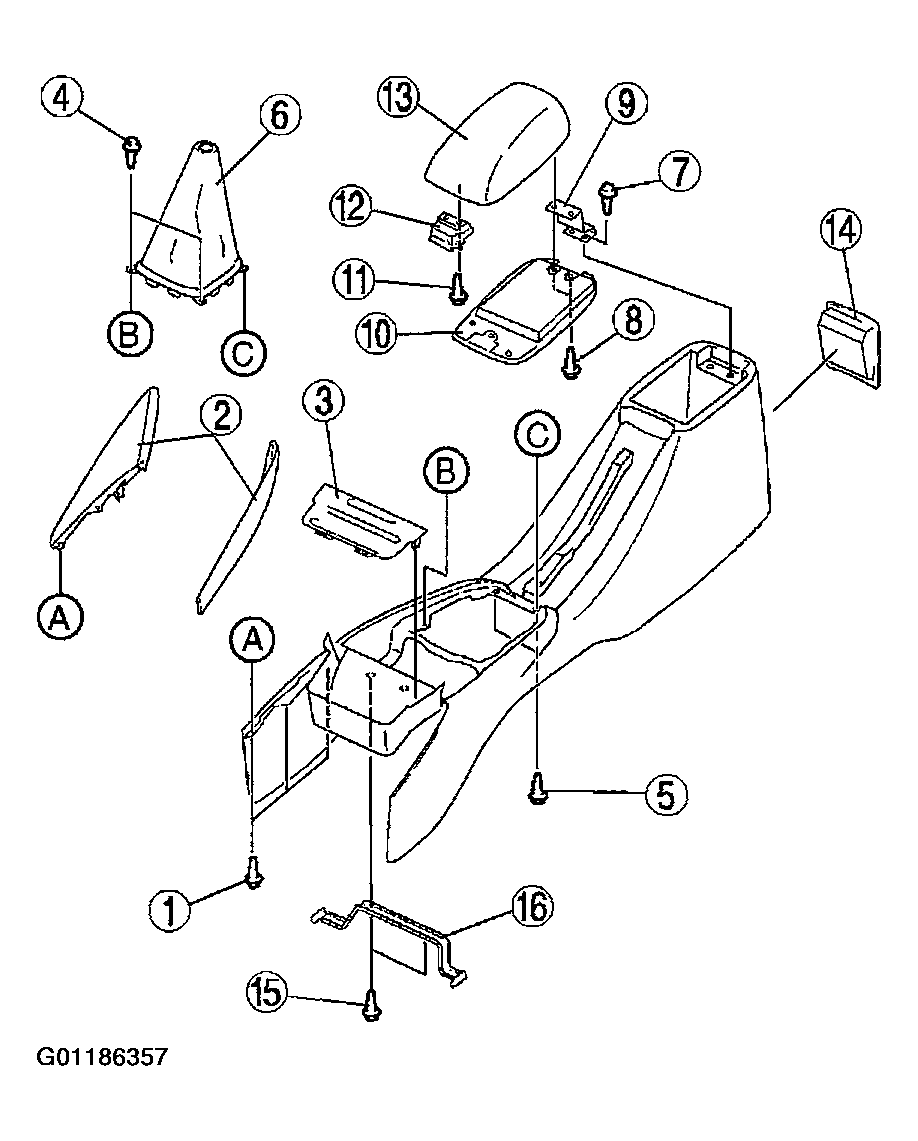

Fig 1: Disassembly/Assembly Of Console (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

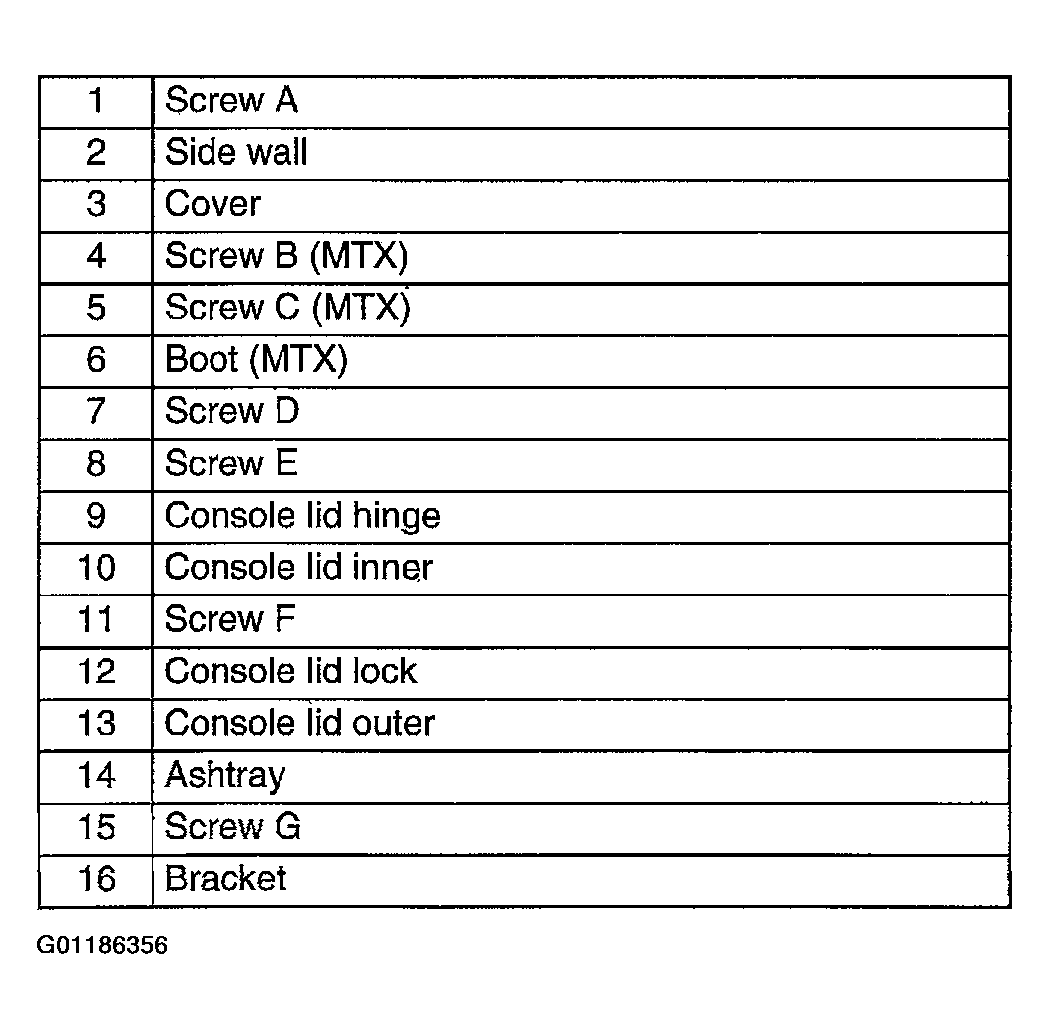

Fig 2: Disassembly/Assembly Of Console (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
