Dashboard Disassembly/Assembly

Disassemble in the order indicated in the illustration.

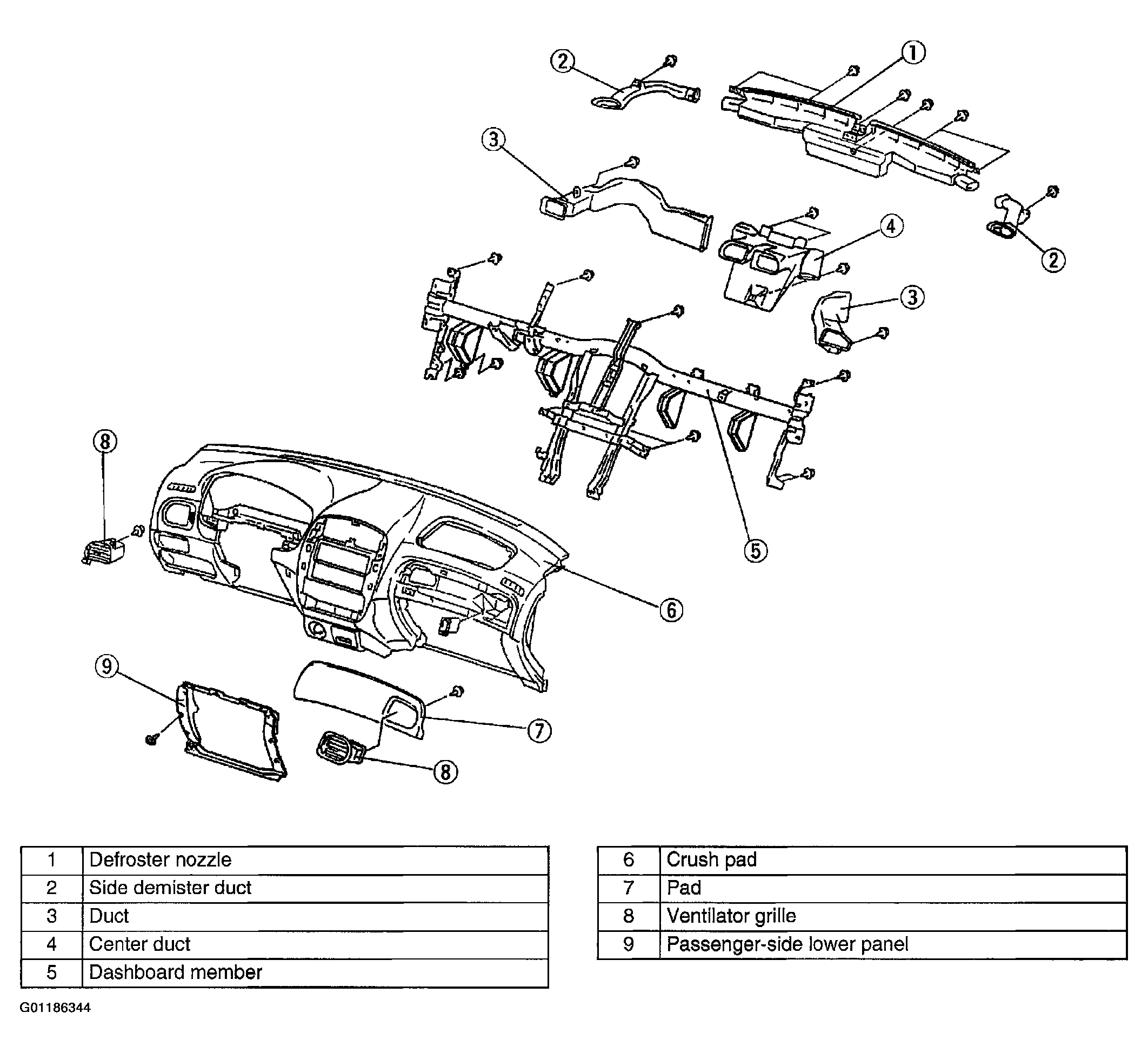

Fig 1: Exploded View Of Dashboard Assembly
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
