Front Scuff Plate Removal/Installation

  1. Pull the front scuff plate upward, then disengage clips A from the body.

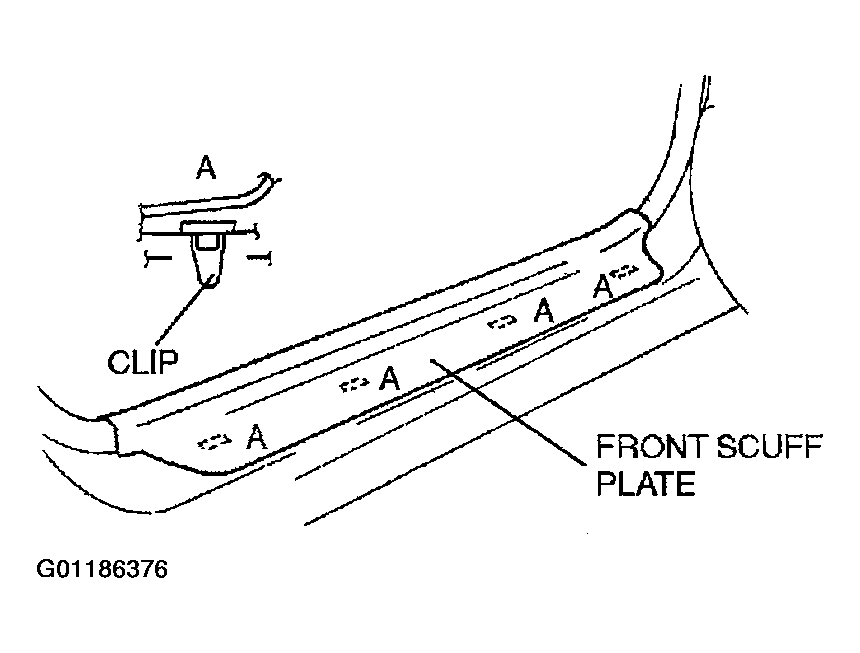

    Fig 1: Removing/Installing Front Scuff Plate
    G01186376Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
