Front Side Trim Removal/Installation
- Remove the front scuff plate.
- Turn the seaming welt over.
- Remove the fasteners.
Courtesy of MAZDA MOTORS CORP.

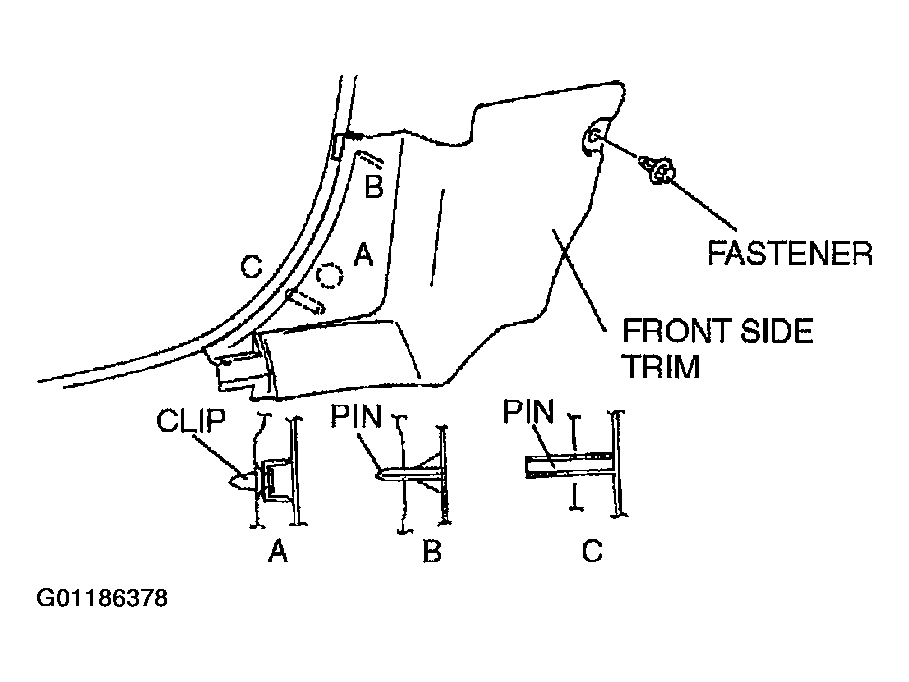

- Pull the front side trim toward you, then disengage clip A, pins B and C from the body.
- Install in the reverse order of removal.
