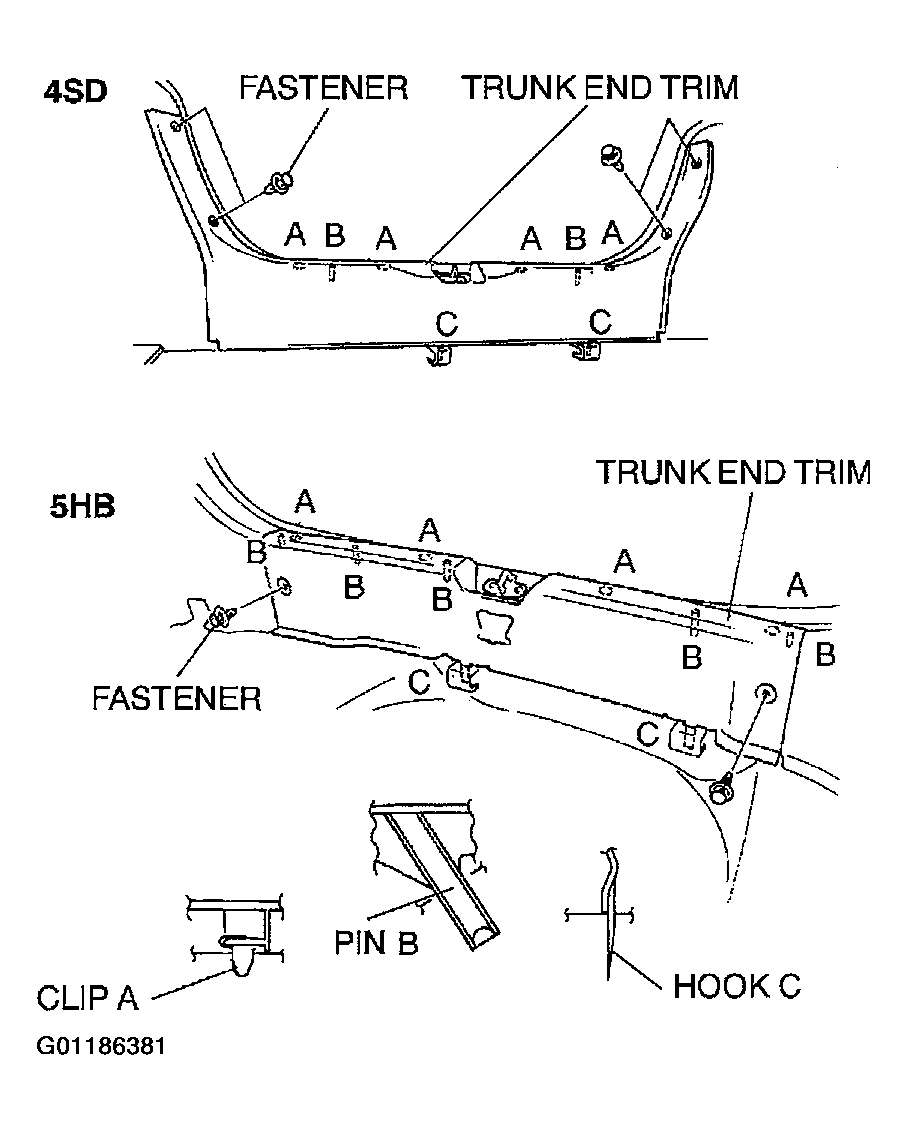

Trunk End Trim Removal/Installation
- Turn the weatherstrip over.
- Remove the fasteners.
- Disengage clips A using a fastener remover from the body.
Courtesy of MAZDA MOTORS CORP.
- Pull the trunk end trim upward, then disengage pins B and C from the body.
- Install in the reverse order of removal.
