Trunk Side Trim Removal/Installation: 4SD

  1. Remove the trunk mat.
  2. Remove the trunk end trim.
  3. Remove the tire house trim.
  4. Remove the fasteners, then remove the belt.

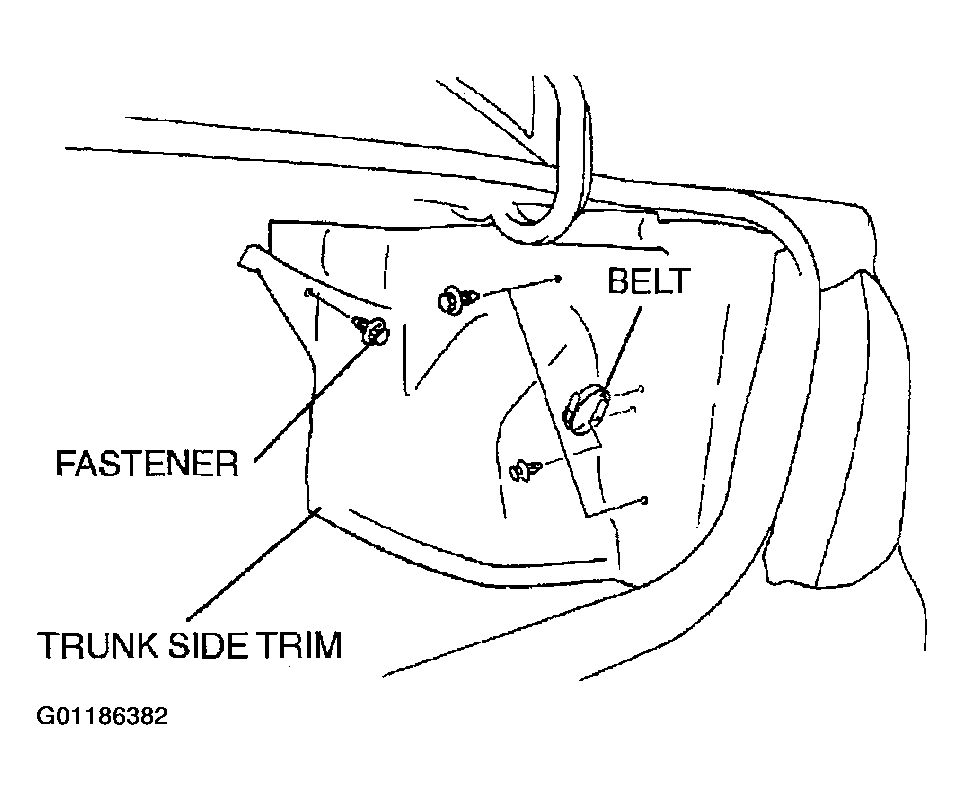

    Fig 1: Removing/Installing Trunk Side Trim (4SD)
    G01186382Courtesy of MAZDA MOTORS CORP.
  5. Pull the trunk side trim outward, then remove it.
  6. Install in the reverse order of removal.
