Power Outside Mirror Switch Inspection

1. Remove the power outside mirror switch. See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION  .
2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
   • If not as specified, replace the power outside mirror switch.

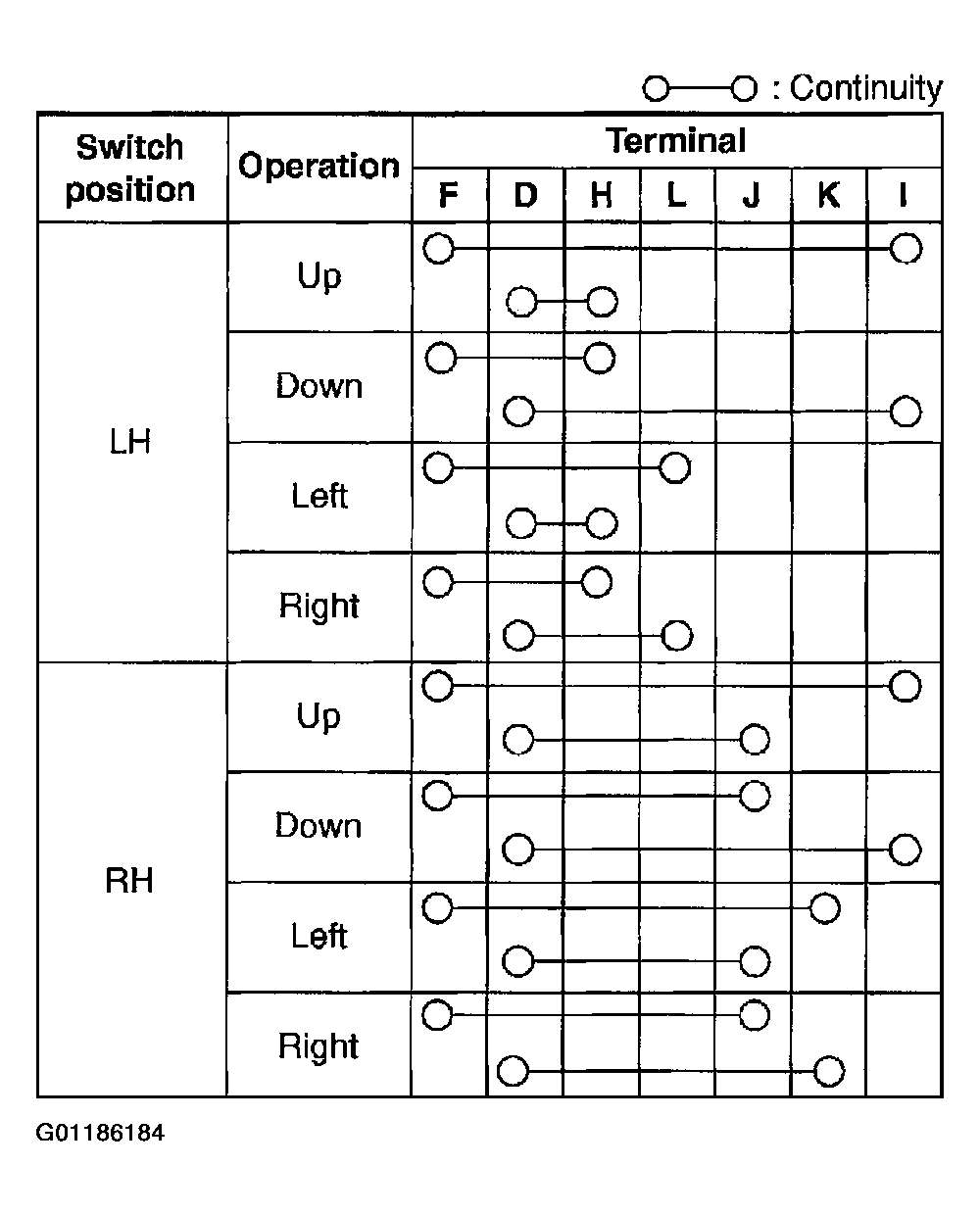

Fig 1: Outside Power Mirror Continuity Test

Courtesy of MAZDA MOTORS CORP.

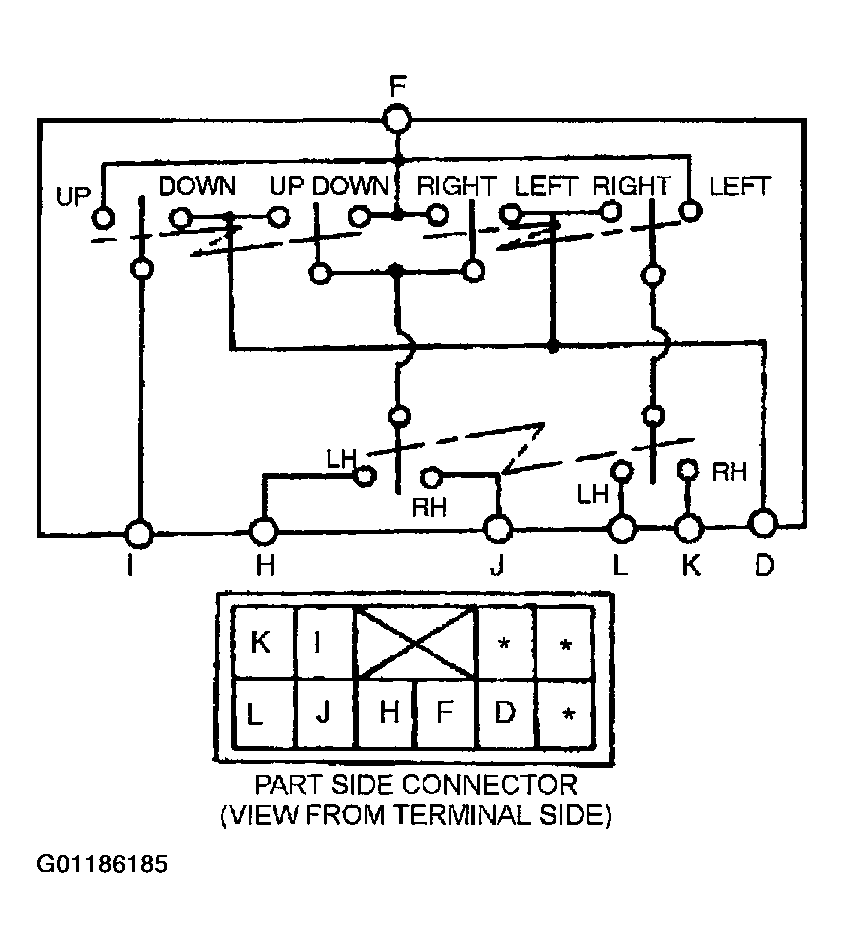

Fig 2: Identifying Outside Power Mirror Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
