Passenger's Side

  1. Disconnect the negative battery cable.
  2. Remove the passenger-side front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
  3. Push out the clip from the reverse side of the trim, and remove the switch panel.

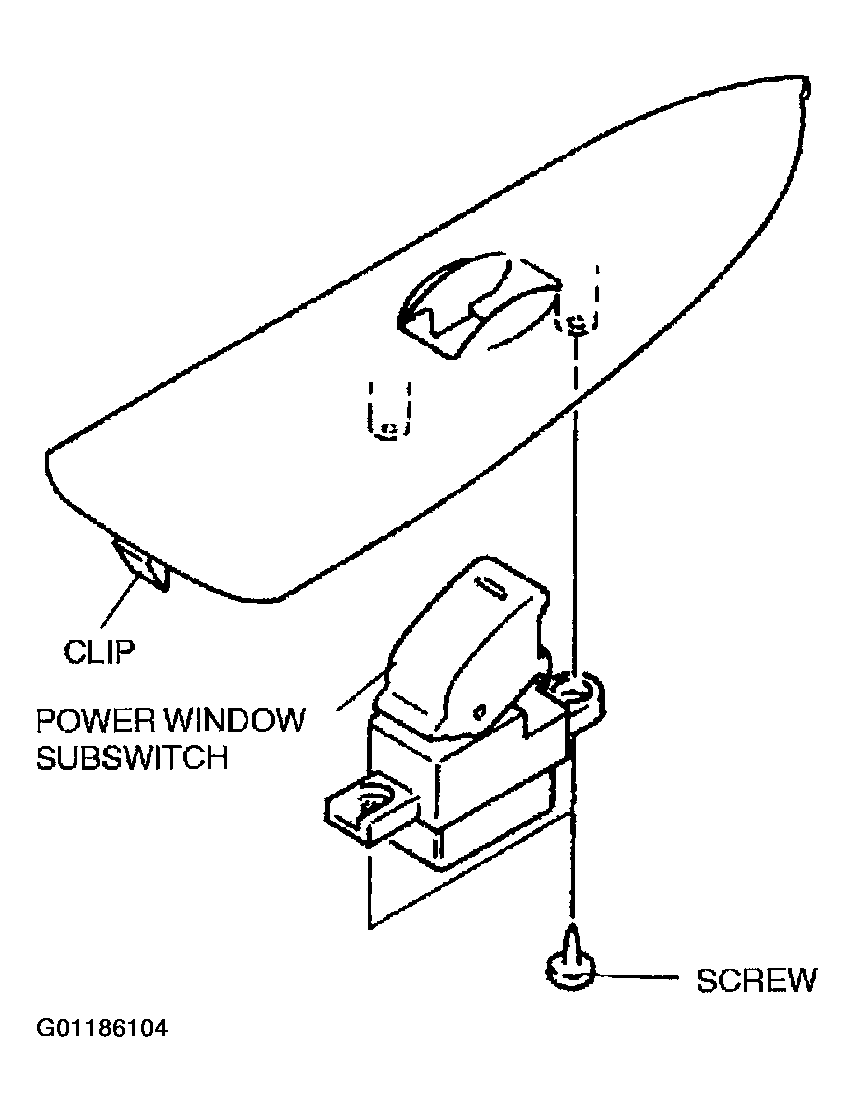

    Fig 1: Removing/Installing Passenger's Side Power Window Subswitch
    G01186104Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw, and remove the power window subswitch.
  5. Install in the reverse order of removal.
