Rear Power Window Regulator Disassembly/Assembly: Notes

Disassemble in the order indicated in the illustrations.

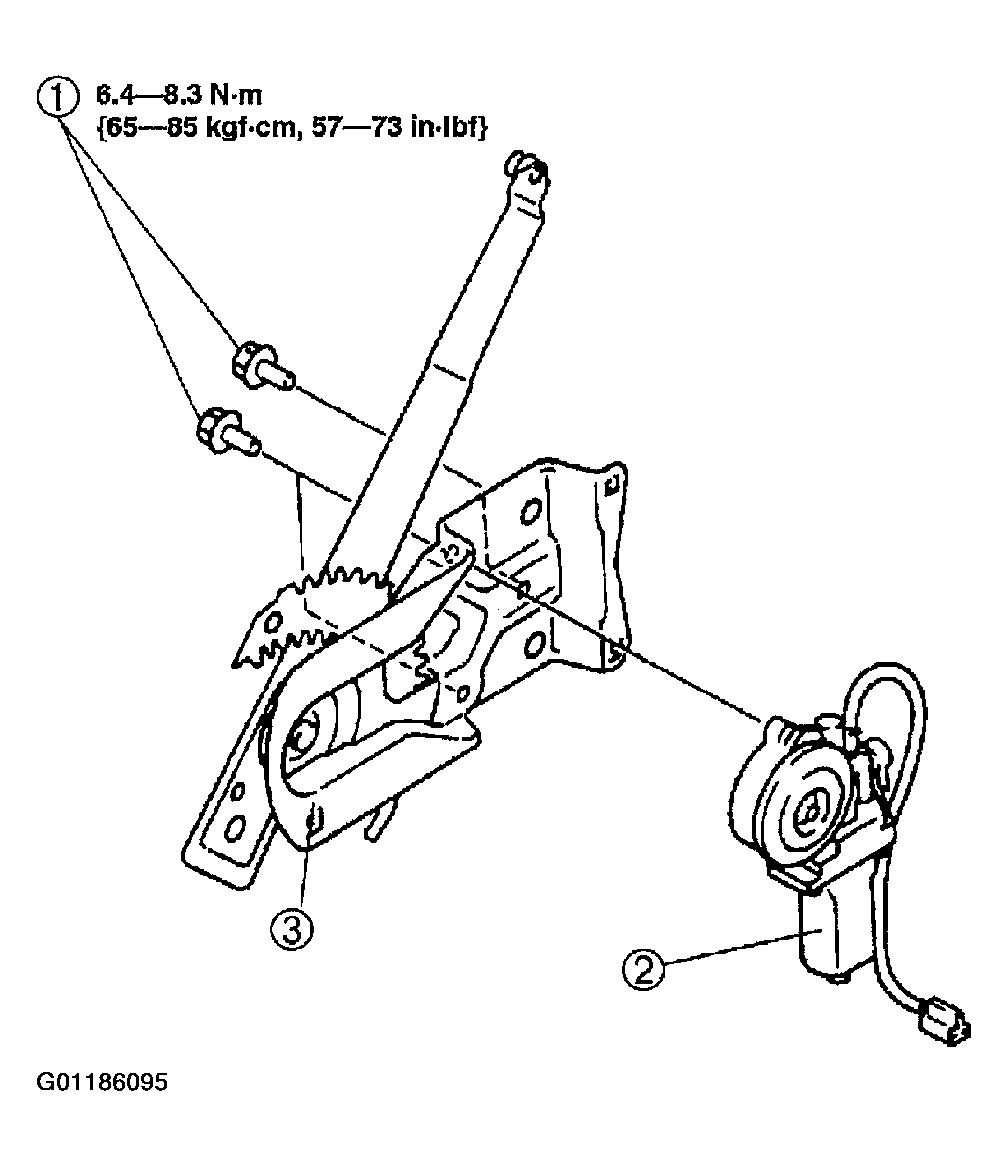

Fig 1: Disassembling/Assembling Rear Power Window Regulator (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembling/Assembling Rear Power Window Regulator (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
